| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| ESD Capability | |
| ESD Immunity (Maximum @ Air discharge, IEC 61000-4-2) | |
| ESD Immunity (Maximum @ Contact discharge, IEC 61000-4-2) | |
| Flammability Rating | |
| Junction Temperature | |
| Leakage Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Working Voltage |

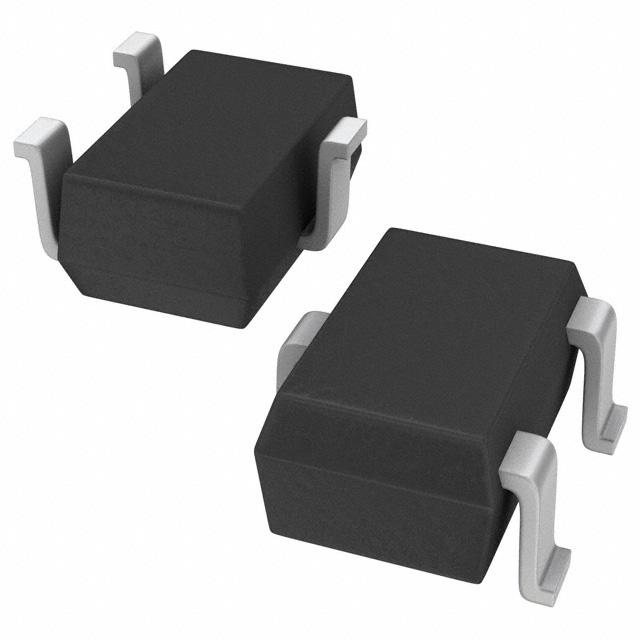

The Vishay VCAN26A2-03G-E3-08 is a bidirectional, symmetrical, low capacitance, dual-line ESD protection diode housed in a compact SOT-323 package. It is specifically designed for CAN and FLEX-bus applications, providing robust protection against electrostatic discharge.
This device features a working voltage of ±26.5V and a low leakage current of less than 0.05 μA. Its load capacitance is below 15 pF at 1 MHz, minimizing signal integrity impact. The diode offers ESD immunity up to ±30 kV contact and air discharge according to IEC 61000-4-2, and an ESD capability of > 8 kV for the human body model (Class H3B) per AEC-Q101.
With a peak pulse current rating of 3A (8/20 μs) and a peak pulse power of 150W, the VCAN26A2-03G-E3-08 is suitable for demanding protection scenarios. It operates within a temperature range of -55°C to +175°C (TJ).
The component is surface mountable in a SOT-323 package. The pins are plated with tin (Sn), and it is RoHS-compliant and lead-free. The maximum soldering peak temperature is 260°C, and it has an MSL level 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standoff (working) voltage is 26.5V.
3A at 8/20µs waveform.
SOT-323 surface mount package.
±30kV contact and air discharge per IEC 61000-4-2.
-55°C to 175°C (junction temperature).
10pF typical at 1MHz.
Less than 0.05µA.
