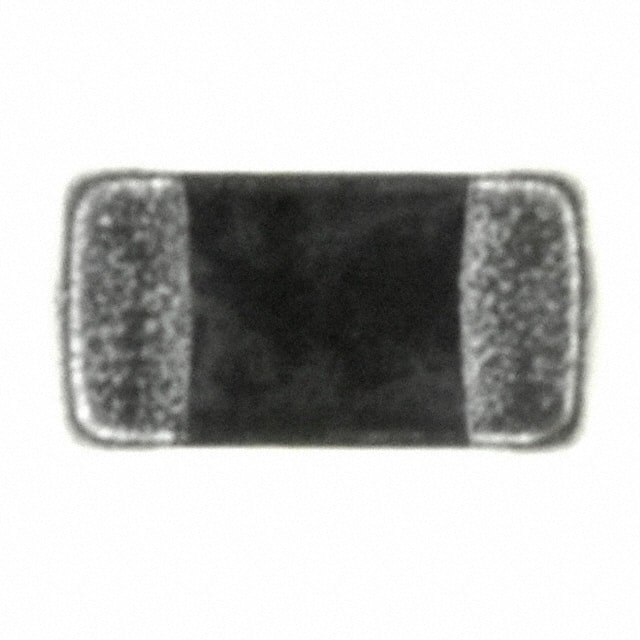

VC120614A300DP Kyocera AVX VC120614A300DP is a TransGuard multilayer ceramic varistor with 18.5V typical varistor voltage, 40A peak current, and 0.1J energy rating in a 1206 SMD package.
Mfr Part #:

VC120614A300DP

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX VC120614A300DP is a TransGuard multilayer ceramic varistor with 18.5V typical varistor voltage, 40A peak current, and 0.1J energy rating in a 1206 SMD package.
✓ Total Stock: 21,000 pcs
$ Price Range: $0.26 - $0.56

VC120614A300DP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
21,000 pcs
On Request
21000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VC120614A300DP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Frequency
Current
Energy
Maximum AC Volts
Maximum DC Volts
Mounting Type
Number of Circuits
Operating Temperature
Tape & Reel
Varistor Voltage (Max)
Varistor Voltage (Min)
Varistor Voltage (Typ)
View Similar Products (0)

VC120614A300DP Description

Short technical summary and product information.

The Kyocera AVX VC120614A300DP is a TransGuard multilayer ceramic varistor (MLCV) designed for transient voltage suppression in surface-mount applications. It offers a typical varistor voltage of 18.5V, with a minimum of 16.28V and a maximum of 20.72V. The device can handle a maximum AC voltage of 10V and a maximum DC voltage of 14V.



With a peak current rating of 40A and an energy rating of 0.1J, this varistor provides reliable protection against voltage transients. It features a typical capacitance of 600 pF at 1 kHz, which also contributes to EMI/RFI filtering. The component is housed in a 1206 (3216 Metric) package and supports surface-mount assembly.



The operating temperature range spans -55°C to 125°C, making it suitable for a wide variety of environments. The part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

VC120614A300DP Quick Information

Product Type: Multilayer Ceramic Varistor (MLCV)
Series: TransGuard
Canonical Name: Kyocera AVX TransGuard Multilayer Ceramic Varistor, 18.5V Typical, 40A Peak, 1206 Package
Subcategory: Multilayer Ceramic Transient Voltage Suppressor

VC120614A300DP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VC120614A300DP Estimated Pricing

Qty Low High
1+ $0.56 $0.56
10+ $0.35 $0.35
100+ $0.31 $0.31
250+ $0.29 $0.29
500+ $0.28 $0.28
1,000+ $0.27 $0.27
5,000+ $0.27 $0.27
10,000+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

VC120614A300DP Features

  • 18.5V typical varistor voltage rating.
  • 40A peak current handling capability.
  • 0.1J energy absorption rating.
  • 600 pF capacitance for EMI filtering.
  • Surface-mount 1206 (3216 Metric) package.

VC120614A300DP Applications

  • Protection for I/O ports and interfaces.
  • Transient suppression in portable devices.
  • Surge protection for industrial controllers.
  • EMI/RFI filtering in telecom equipment.
  • Circuit protection for LED lighting systems.

VC120614A300DP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical varistor voltage of the VC120614A300DP?

The typical varistor voltage is 18.5V, with a minimum of 16.28V and a maximum of 20.72V.

What is the peak current rating of this varistor?

The maximum peak current rating is 40A.

What is the package size of the VC120614A300DP?

The package is 1206 (3216 Metric), surface-mount MLCV.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the capacitance of this varistor?

The typical capacitance is 600 pF at 1 kHz.

VC120614A300DP Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
VC120614A300RP
VC120614A300RP
Kyocera AVX
Kyocera AVX VC120614A300RP is a surface mount multilayer ceramic varistor (MLCV) with a typical varistor voltage of 18.5V, peak current rating of 40A, and energy rating of 0.1J. Housed in a 1206 (3216 Metric) package.
