| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

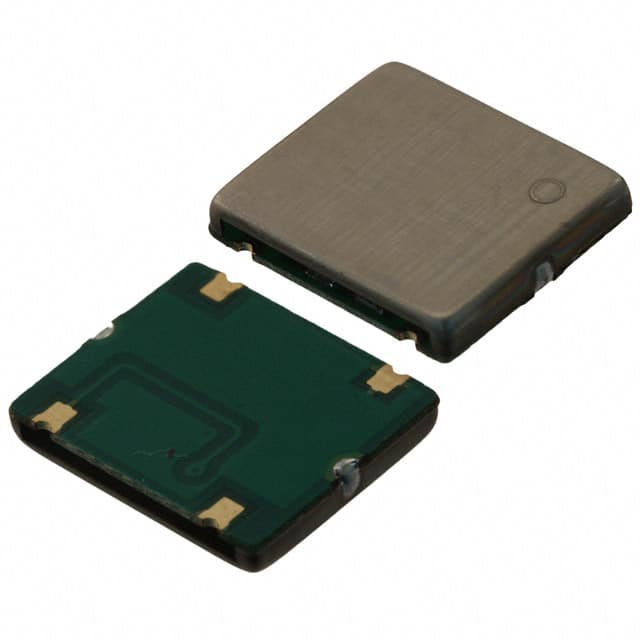

The VC-TXO-39SMX-100-TR is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) from ECS Inc. This device operates at a frequency of 10 MHz with a standard frequency stability of ±2.5ppm. It requires a 3V supply voltage and consumes a typical current of 1.5mA.
The VCTCXO is designed for a wide operating temperature range of -30°C to 75°C. It features a voltage control function with a frequency control range of ±12 ppm typical, allowing for fine adjustments via a control voltage between 0.5V and 2.5V. The output signal is a clipped sine wave.
Packaged in a compact 4-SMD, No Lead surface mount package measuring 11.40mm x 9.60mm x 2.50mm, this oscillator is suitable for applications requiring precise frequency control in a small footprint. It is supplied on tape and reel in quantities of 500 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.0 V DC.
The package type is 4-SMD, No Lead.
The operating temperature range is -30°C to 75°C.
The standard frequency stability is ±2.5 ppm.
The output type is Clipped Sine Wave.
The current consumption is 1.5 mA.
