| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Material |

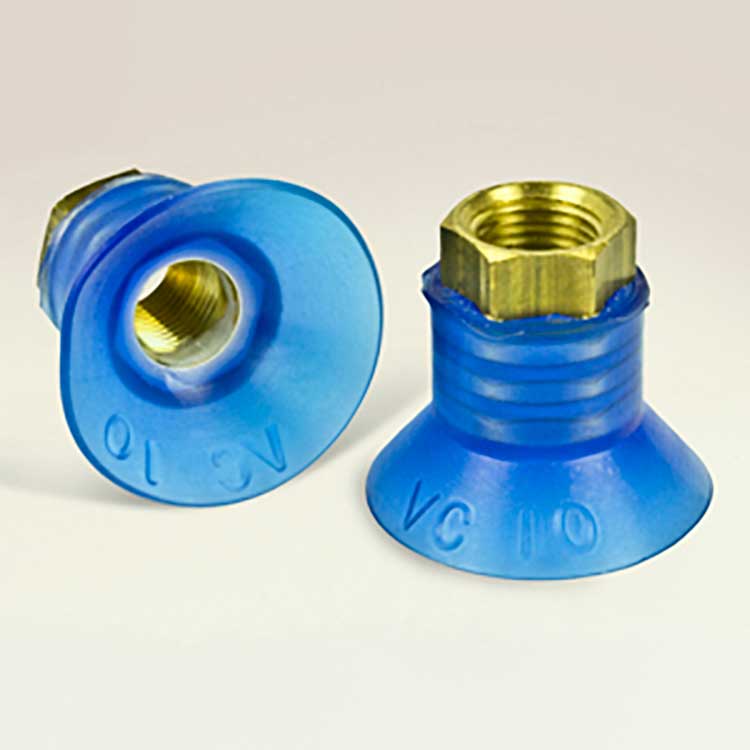

The VC-10 1/8 NPT from All-Vac Industries is a suction cup designed for vacuum applications. It features a lip diameter of 1.04 inches (26.4 mm) and an overall height of 0.90 inches (22.9 mm). The mounting stem is threaded, providing a secure connection.
This suction cup is offered in multiple material options, including standard Vinyl, Urethane, Silicone, Oil Resistant Vinyl, FDA Vinyl, FDA Silicone, and Anti-Static Vinyl. Each material offers different properties regarding working temperature, wear resistance, oil resistance, and durometer range. For example, Silicone materials can operate between -50 to 400°F, while Vinyl materials are typically rated for 32 to 125°F.
The specific material chosen will impact the suction cup's performance in various environments. For applications requiring resistance to oils, the Oil Resistant Vinyl option is recommended. For food-grade applications, FDA Vinyl or FDA Silicone are suitable choices. The Anti-Static Vinyl variant is designed for environments where static discharge is a concern.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The lip diameter is 1.04 inches or 26.4 mm.
The overall height is 0.90 inches or 22.9 mm.
It features a threaded mounting stem.
Available materials include Vinyl, Urethane, Silicone, Oil Resistant Vinyl, FDA Vinyl, FDA Silicone, and Anti-Static Vinyl.
The Silicone material option has a working temperature range of -50 to 400°F.
Oil Resistant Vinyl offers excellent oil resistance.
The RoHS status is RoHS3 Compliant.
