| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
612 pcs
|
612 pcs | On Request | 1 | On Request | On Request | 1812+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Dimensions | |
| Diode Type | |
| Forward Voltage | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Response Time | |
| Spectral Range | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

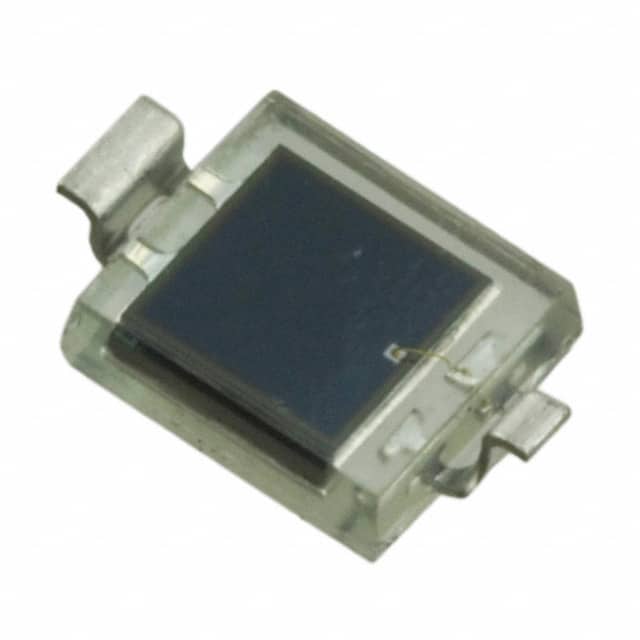

The Vishay Dale VBPW34SR is a high-speed and high-sensitivity Silicon PIN Photodiode. This surface-mount device (SMD) is designed to detect visible and near-infrared radiation, making it suitable for various high-speed photo detection applications.
Key electrical characteristics include a reverse voltage rating of 60V, a typical forward voltage of 1.3V at 50mA, and a breakdown voltage of 60V. The photodiode exhibits a typical reverse dark current of 2nA at 10V and a typical diode capacitance of 70pF at 0V and 25pF at 3V (both at 1MHz).
With a fast response time of 100ns and a spectral range from 430nm to 1100nm, the VBPW34SR is engineered for performance. It has a radiant sensitive area of 7.5 mm² and an angle of half sensitivity of ±65°. The device operates within an ambient temperature range of -40°C to +100°C.
The VBPW34SR comes in a 2-SMD, Z-Bend package with a surface mount type. It is supplied on tape and reel with a standard package quantity of 1000 pieces per reel. The component is designed for lead-free reflow soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse voltage rating for the VBPW34SR is 60 V.
The typical response time of the VBPW34SR photodiode is 100 ns.
The spectral range of the VBPW34SR photodiode is 430 nm to 1100 nm.
The VBPW34SR photodiode is in a 2-SMD, Z-Bend package.
The VBPW34SR photodiode is mounted using the surface mount method.
The operating temperature range for the VBPW34SR is -40°C to +100°C.
