| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140,000 pcs
|
140000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Angle of Half Sensitivity | |
| Breakdown Voltage | |
| Current | |
| Dark Current | |
| Dimensions | |
| Diode Capacitance (Maximum @ VR = 0 V, f = 1 MHz, E = 0) | |
| Diode Capacitance (Maximum @ VR = 3 V, f = 1 MHz, E = 0) | |
| Diode Type | |
| Forward Voltage | |
| Halogen Free | |
| Height | |
| Junction Temperature | |
| Mounting Type | |
| Noise Equivalent Power | |
| Open Circuit Voltage | |
| Operating Temperature | |
| Operating Temperature Range (Minimum/Maximum) | |
| Package Form | |
| Peak Wavelength | |
| Photocurrent | |
| Power Dissipation | |
| Response Time | |
| Reverse Dark Current | |
| Reverse Voltage | |
| Soldering Temperature | |
| Spectral Range | |
| Storage Temperature Range (Minimum/Maximum) | |
| Tape & Reel | |
| Tape and Reel | |
| Temperature Coefficient of VO | |
| Thermal Resistance (Junction-Ambient) | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Width |

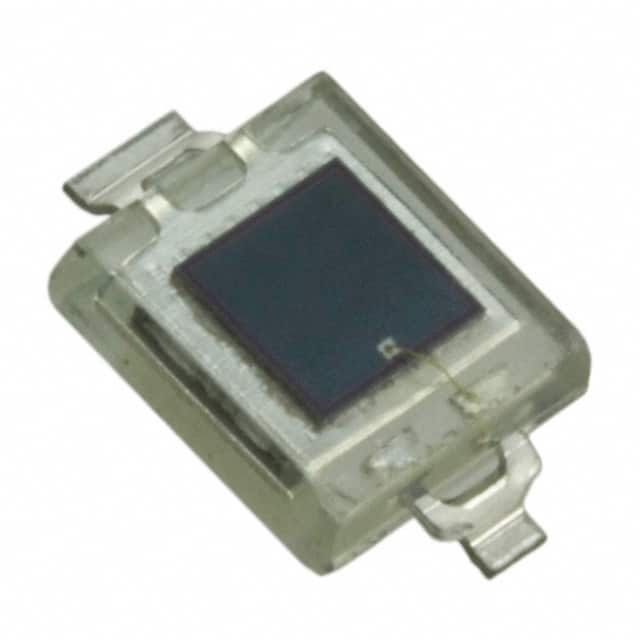

The Vishay VBP104S is a high-speed and high-sensitivity Silicon PIN Photodiode. It is designed for detecting visible and near-infrared radiation, making it suitable for various photo detection applications.
This photodiode has a reverse voltage rating of 60V and a power dissipation of 215mW at 25°C. The junction temperature can reach up to 100°C, with an operating temperature range of -40°C to +100°C. Its spectral range spans from 430nm to 1100nm, with a peak wavelength typically at 940nm.
The VBP104S is housed in a surface mountable 2-SMD, Gull Wing package with dimensions of 6.4 x 3.9 x 1.2 mm. It offers a fast response time of 100ns and an angle of half sensitivity of ±65°. The device is lead-free and halogen-free compliant.
Key electrical characteristics include a typical forward voltage of 1.3V at 50mA, a reverse dark current of 230nA at 10V, and a diode capacitance of 48pF at 0V and 1MHz. The active sensitive area is 4.4mm².
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VBP104S has a maximum reverse voltage rating of 60V.
The VBP104S photodiode detects radiation in the spectral range of 430nm to 1100nm.
The VBP104S has a typical response time of 100ns.
The VBP104S is available in a 2-SMD, Gull Wing surface mount package.
The VBP104S is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the VBP104S is 1 Unlimited.
