| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Junction Temperature | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage |
The IXYS VBO36-16NO8 is a three phase bridge rectifier module designed for converting three phase AC input to DC output. It features a repetitive peak reverse voltage (VRRM) of 1600V and an average rectified output current of 30A at a case temperature of 62°C, or 25A at 85°C.
This rectifier uses planar passivated chips for reliable performance and has a low typical forward voltage of 1.7V at 150A. It can handle non-repetitive peak forward surge currents up to 600A (60Hz) and offers an I²t rating of 1520 A²s for fuse coordination. The module provides isolation voltage of 2500V RMS for 1 minute and 3000V RMS for 1 second.

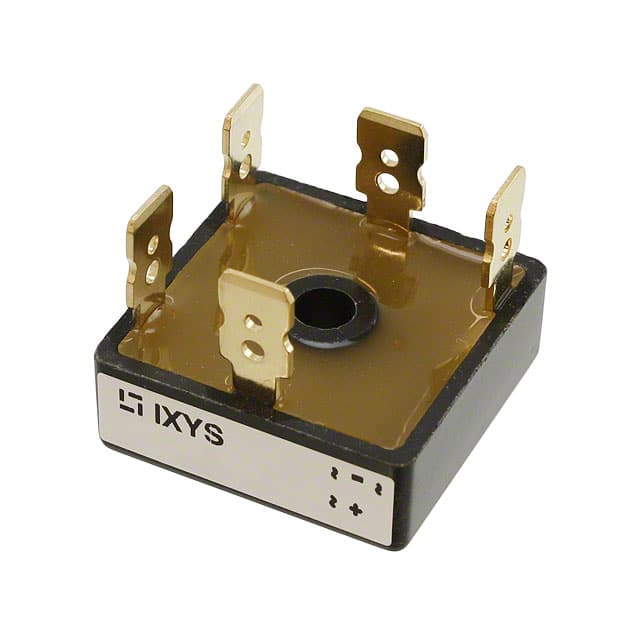

The VBO36-16NO8 is packaged in a compact 4-Square FO-B module with ¼" fast-on (6.3x0.8mm) terminals for easy QC terminal mounting. It weighs 22g and has a creepage distance of 12.7mm and clearance distance of 9.4mm. The operating junction temperature range is -40°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.05 | $22.05 |
| 10+ | $15.09 | $15.09 |
| 100+ | $11.74 | $11.74 |
| 500+ | $11.01 | $11.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VBO36-16NO8 has a repetitive peak reverse voltage of 1600V.
The average rectified output current is 30A at a case temperature of 62°C, and 25A at 85°C.
The typical forward voltage is 1.7V at a forward current of 150A and junction temperature of 25°C.
The maximum non-repetitive peak forward surge current is 550A for 10ms (50Hz) and 600A for 8.3ms (60Hz) at TJ=45°C.
It uses a 4-Square FO-B package with QC terminal mounting and fast-on (6.3x0.8mm) termination style.
The isolation voltage is 2500V RMS for 1 minute and 3000V RMS for 1 second.
The operating junction temperature range is -40°C to 150°C.
