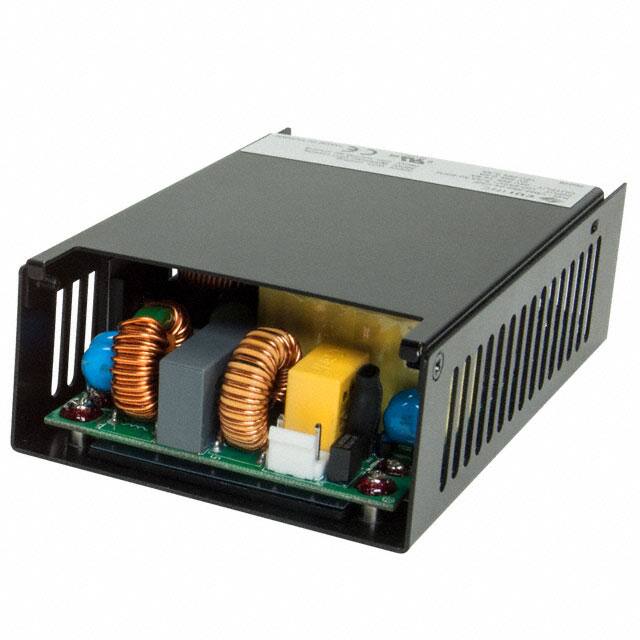

The CUI Inc. VBM-360-12-CNF is a 360W AC-DC power supply with a 12V output voltage. It is designed for chassis mounting and features an enclosed form factor.
Key electrical specifications include a universal input voltage range of 90-264 Vac and an efficiency of up to 93.5%. The power supply offers protections such as over voltage, short circuit, and over temperature, along with built-in active PFC and remote sense functions.
This series is suitable for ITE (Commercial) applications and operates within an ambient temperature range of -20°C to 85°C with derating. The dimensions are 127.0mm x 76.2mm x 40.6mm, making it an industry-standard 3" x 5" footprint.
The output voltage is 12 Vdc.
The maximum output current is 29.6 A.
The maximum power output is 360W.
The efficiency is up to 93.5%.
The input voltage range is 90 to 264 Vac.
The operating temperature range is -20°C to 85°C, with derating.
It is designed for chassis mounting.
