| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

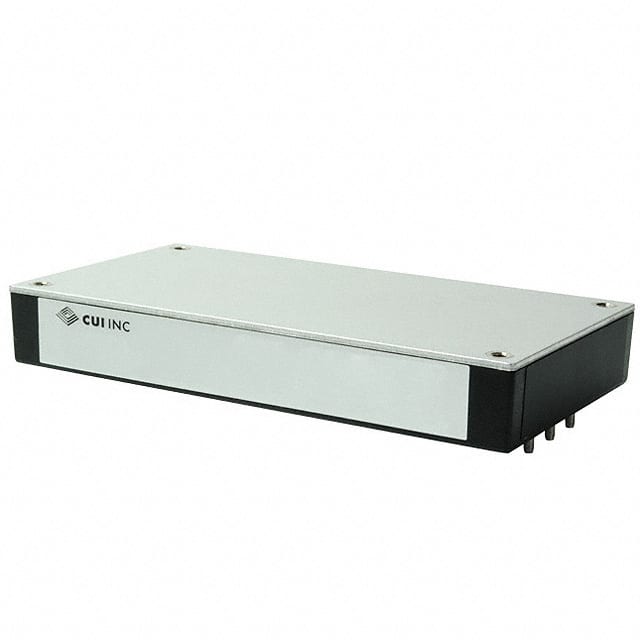

The CUI Inc. VBM-100-48 is an AC-DC power supply from the VBM-100 series, delivering up to 100W of isolated output power. It operates with a universal input voltage range of 90 to 264 Vac and provides a single 48Vdc output.
Key features include baseplate cooling, active Power Factor Correction (PFC) meeting EN61000-3-2 Class D standards, and an ultra-low profile encapsulated packaging measuring 17mm. The unit offers high efficiency up to 92% and has protections for over-temperature, over-voltage, and short circuits. Its wide operating temperature range is -20°C to 85°C.
Designed for applications requiring reliable power conversion, this module is suitable for ITE (Commercial) use. It meets various safety and compliance standards including CB Scheme, EN, FCC, IEC, and UL. The dimensions are 116.8mm x 61.0mm x 17.0mm, with a Through Hole mounting type.
The output voltage is 48 Vdc.
The maximum output power is 100 W.
The input voltage range is 90 to 264 Vac.
The operating temperature range is -20°C to 85°C.
The VBM-100-48 is mounted using the Through Hole method.
