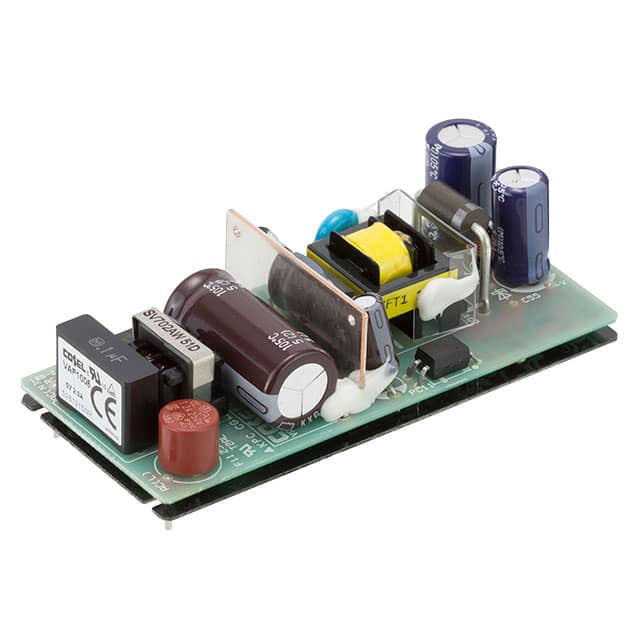

The Cosel VAF1024 is a PCB mount AC/DC converter from the VAF-series, designed for reliable power conversion. It offers a universal input voltage range of 85-264 VAC or 110-370 VDC, making it suitable for global applications.
This converter provides a stable 24V DC output at 450mA, with a maximum output wattage of 11W. Key electrical specifications include an efficiency of 81%, line regulation of 96mV maximum, and load regulation of 150mV maximum. It also features built-in overcurrent and overvoltage protection circuits.
The VAF1024 is designed for through-hole mounting in a 5-DIP Module package, with dimensions of 78.0mm x 36.1mm x 21.1mm. It operates within an ambient temperature range of -10°C to +71°C (with derating) and meets various safety agency approvals including CE, cURus, and TUV.
Safety features include high isolation voltages between input-output, input-FG, and output-FG. The converter complies with worldwide EMC standards and directives such as EN55022-B, EN61000-4 series, Low Voltage Directive, and RoHS Directive.
The output voltage of the Cosel VAF1024 is 24V.
The output current for the VAF1024 is 450mA.
The maximum output wattage of the VAF1024 is 11W.
The input voltage range for the VAF1024 is 85-264 VAC or 110-370 VDC.
The operating temperature range for this AC/DC converter is -10°C to +71°C.
Yes, the VAF1024 is RoHS3 Compliant.
