| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

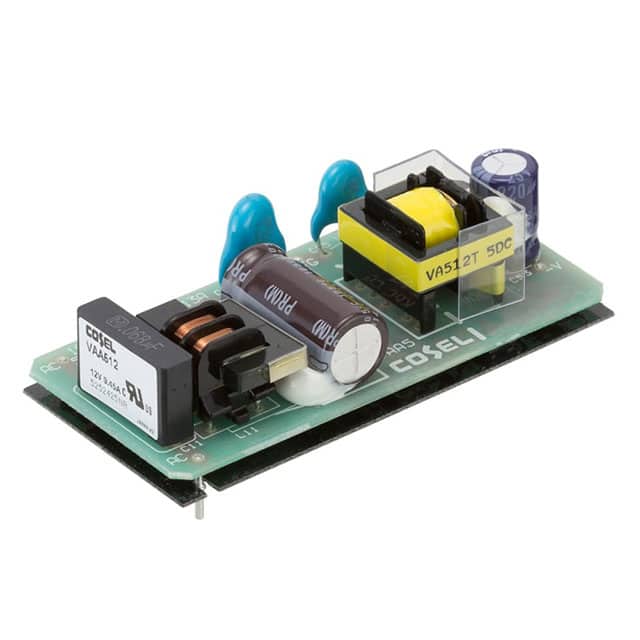

The Cosel VAA505 is an open frame AC-DC power supply designed for ITE (Commercial) applications. It delivers a stable 5V DC output at up to 1A, providing a total of 5W maximum wattage. The unit accepts a wide input voltage range of 85 to 132 VAC or 110 to 170 VDC, with a typical efficiency of 75% at full load.
This converter features through-hole mounting and a 5-DIP module package, making it suitable for PCB integration. It includes overcurrent and overvoltage protection circuits for enhanced reliability. The operating temperature range is -10°C to 70°C with derating, and it meets UL60950-1 and C-UL agency approvals.
Key electrical specifications include line regulation of 20mV maximum and load regulation of 40mV maximum. Ripple and noise are kept to 80mVp-p maximum at operating temperatures up to +55°C. Isolation ratings are 2000 VAC for input-output and input-FG, and 500 VAC for output-FG.
85-132 VAC or 110-170 VDC.
5-DIP Module with through-hole mounting.
-10°C to +70°C with derating.
Overcurrent protection (works over 105% of rating, auto recovery) and overvoltage protection (works over 115% of rating via zener clamping).
Input-output 2000 VAC, input-FG 2000 VAC, output-FG 500 VAC.
Typical 75%.
32 x 18 x 65 mm (WxHxD), weight 30g max.
