| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

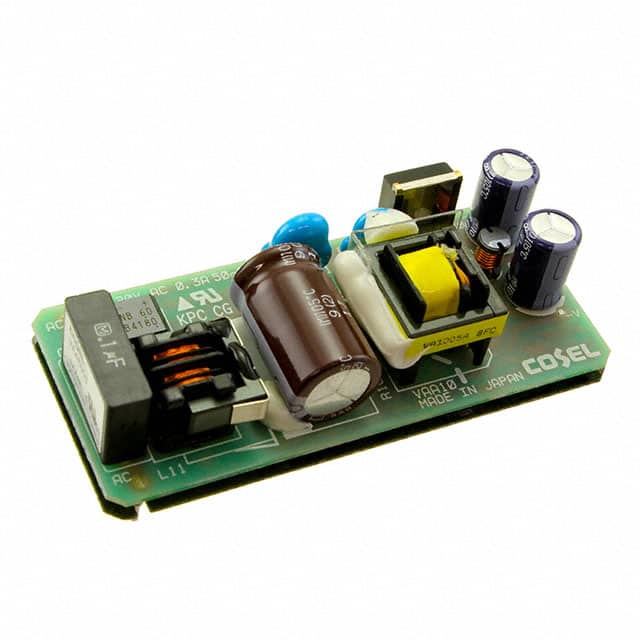

The Cosel VAA1005 is an open frame AC DC converter designed for ITE (Commercial) applications. It features a 5V output voltage with a maximum current of 2A, delivering up to 10W of power.
The converter accepts an input voltage range of 85 to 132 VAC or 110 to 170 VDC. It boasts an efficiency of 76% and includes overcurrent and overvoltage protection circuits. The unit is designed for through-hole mounting and comes in a 5-DIP Module package.
Key specifications include a line regulation of 20mV and a load regulation of 40mV. The operating temperature range is -10°C to +70°C with derating. Isolation ratings are AC2,000V for input-output and input-FG, and AC500V for output-FG.
Agency approvals include cURus and compliance with DEN-AN. Conducted noise complies with FCC-B standards, though additional capacitors may be required for VCCI class B compliance.
The VAA1005 has an output voltage of 5V.
The VAA1005 can provide a maximum output current of 2A.
The input voltage range for the VAA1005 is 85 to 132 VAC or 110 to 170 VDC.
The VAA1005 has a typical efficiency of 76%.
The dimensions of the VAA1005 are 72.4mm x 32.0mm x 18.0mm.
The VAA1005 operates within a temperature range of -10°C to +70°C.
The VAA1005 has cURus agency approvals and complies with DEN-AN.
