| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | 2121+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Line Regulation (Typical/Maximum) | |
| Load Regulation (Typical/Maximum) | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage (Minimum/Maximum @ 5 Vdc model) | |
| Output Voltage | |
| Power (Watts) | |
| Short circuit protection | |
| Storage Temperature | |
| Switching Frequency | |
| Temperature Coefficient | |
| Thermal Shutdown | |
| Type | |
| Voltage | |
| Voltage Accuracy (Typical/Maximum) | |
| Weight | |
| Width |

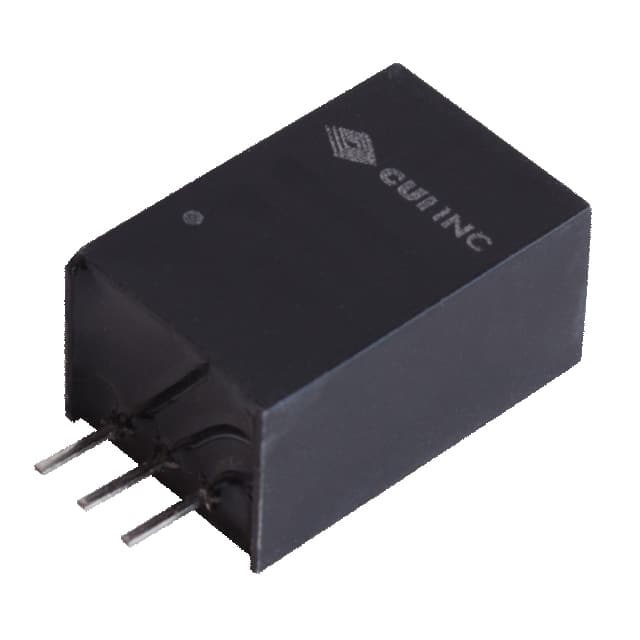

The CUI Inc. V7805-1000 is a non-isolated switching regulator designed as a replacement for linear regulators. It provides a stable 5V DC output with a maximum current of 1A, delivering 5W of power.
This converter boasts high efficiency, reaching up to 93%, and requires no external heatsink. Key electrical specifications include line regulation of ±0.4% and load regulation of ±0.6%. It operates with an input voltage range suitable for various applications and features built-in short circuit protection and thermal shutdown.
Mechanically, the V7805-1000 is housed in a 3-SIP module with through-hole mounting. Its dimensions are 11.5mm x 9.0mm x 17.5mm. The operating temperature range is -40°C to 85°C, making it suitable for demanding environments. The device also offers low ripple and noise characteristics, measured at 35mVp-p.
Compliance includes RoHS3 compatibility and an MSL 1 rating. With an MTBF of 2,000,000 hours at 25°C, this switching regulator is a reliable choice for power supply applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The V7805-1000 provides a nominal output voltage of 5 Vdc.
The maximum output current for the V7805-1000 is 1 A.
The typical efficiency of the V7805-1000 is 93%.
The V7805-1000 operates within a temperature range of -40°C to 85°C.
The V7805-1000 is supplied in a 3-SIP Module package.
Yes, the V7805-1000 features continuous short circuit protection with automatic recovery.
