| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Cycles | |
| Differential Travel | |
| Electrical Load | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Switch Function | |
| Tape & Reel | |
| Temperature Range | |
| Termination Style | |
| Voltage Rating |

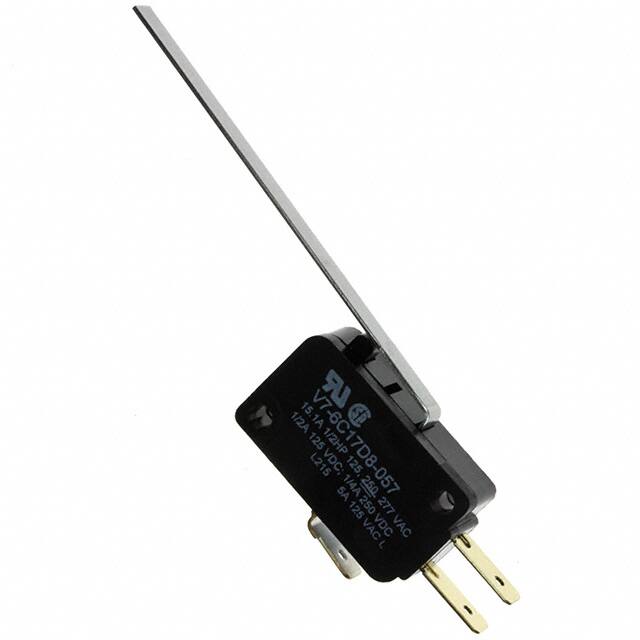

The Honeywell V7-6C17D8-057 is a premium miniature basic switch from the V7 Series, designed for long-term reliability. This snap action switch features a single pole double throw (SPDT) circuit and is rated for power duty switching up to 15A at 125V.
It is designed for chassis mounting and utilizes quick connect terminals with a 0.187" (4.7mm) size for easy installation. The operating temperature range for this switch is -40°C to 85°C, making it suitable for various environmental conditions. The switch has a pretravel of 0.310" (7.9mm), an overtravel of 0.146" (3.7mm), and a differential travel of 0.065" (1.7mm), with an operating force of 113gf.
These switches are built with a high-strength thermoplastic housing and incorporate a snap-spring mechanism for durability, rated for up to 10 million cycles. Potential applications include vending machines, household appliances, and refrigeration equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The switch has a current rating of 15A for AC and 500mA for DC.
The switch features a Single Pole Double Throw (SPDT) circuit.
The voltage rating is 125V.
It is designed for chassis mounting.
The termination style is Quick Connect with a size of 0.187" (4.7mm).
