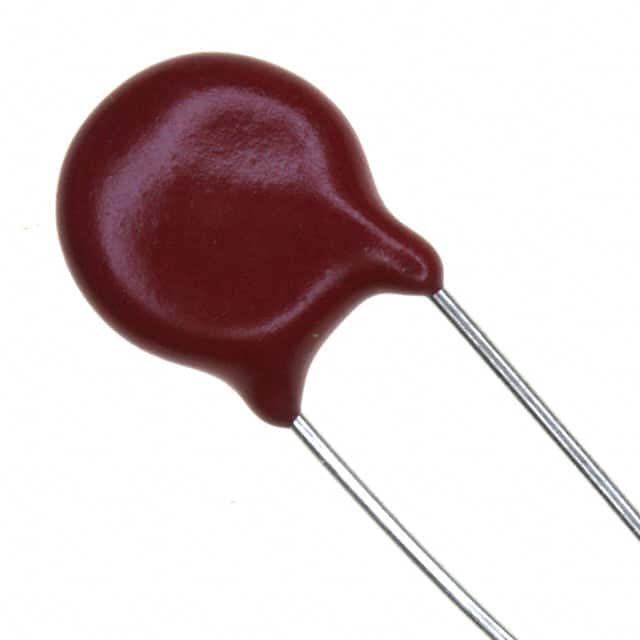

V56ZA2P The Littelfuse V56ZA2P is a 56V, 250A metal-oxide varistor in a Disc 7mm through-hole package. It is RoHS and Halogen-Free compliant.
Mfr Part #:

V56ZA2P

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse V56ZA2P is a 56V, 250A metal-oxide varistor in a Disc 7mm through-hole package. It is RoHS and Halogen-Free compliant.
✓ Total Stock: 840 pcs
$ Price Range: $0.16 - $0.34

V56ZA2P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
840 pcs
On Request
840 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

V56ZA2P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Frequency
Current
Energy
Halogen Free
Lead Style
Maximum AC Volts
Maximum DC Volts
Mounting Type
Number of Circuits
Operating Temperature
SVHC Present
Storage Temperature
Tape & Reel
Varistor Voltage (Max)
Varistor Voltage (Min)
Varistor Voltage (Typ)
View Similar Products (0)

V56ZA2P Description

Short technical summary and product information.

The Littelfuse V56ZA2P is a metal-oxide varistor (MOV) from the ZA Series, designed for transient voltage surge suppression in low and medium-voltage circuits. It features a typical varistor voltage of 56V at 1 mA DC, with a minimum of 50.4V and a maximum of 61.6V. The device can handle a peak pulse current of 250A for an 8/20 µs waveform and has an energy rating of 2.3J.



This varistor is housed in a Disc 7mm through-hole package with radial leads, suitable for hard-wired or printed circuit board designs. It operates over an ambient temperature range of -55°C to 85°C. The ZA Series is commonly used in motor control, telecom, solenoid, and power supply circuits to protect board components and maintain data integrity.



The V56ZA2P is lead-free, halogen-free, and RoHS compliant, making it suitable for environmentally conscious designs. It is available in tape and reel or bulk packaging options.

V56ZA2P Quick Information

Product Type: Metal-Oxide Varistor (MOV)
Series: ZA
Canonical Name: Littelfuse ZA Series 56V 250A Through Hole Metal-Oxide Varistor, Disc 7mm
Subcategory: Radial Lead Varistor

V56ZA2P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

V56ZA2P Estimated Pricing

Qty Low High
1+ $0.34 $0.34
10+ $0.21 $0.21
100+ $0.18 $0.18
250+ $0.17 $0.17
500+ $0.16 $0.16
1,000+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

V56ZA2P Features

  • Typical varistor voltage of 56V.
  • Peak pulse current rating of 250A.
  • Energy rating of 2.3 joules.
  • Through-hole Disc 7mm package.
  • RoHS and Halogen-Free compliant.

V56ZA2P Applications

  • Protection in motor control circuits.
  • Surge suppression in telecom equipment.
  • Transient protection for solenoid drivers.
  • Overvoltage clamping in power supplies.

V56ZA2P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the varistor voltage of the V56ZA2P?

The typical varistor voltage is 56V at 1 mA DC, with a minimum of 50.4V and a maximum of 61.6V.

What is the peak pulse current rating of the V56ZA2P?

The peak pulse current is 250A for an 8/20 µs waveform.

What is the operating temperature range of the V56ZA2P?

The operating ambient temperature range is -55°C to 85°C.

What is the package type of the V56ZA2P?

The package is a Disc 7mm with through-hole mounting.

Is the V56ZA2P RoHS compliant?

Yes, the V56ZA2P is RoHS3 compliant and Halogen-Free, as stated in the datasheet.
