| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,436 pcs
|
2436 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Halogen Free | |
| Industrial Grade | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

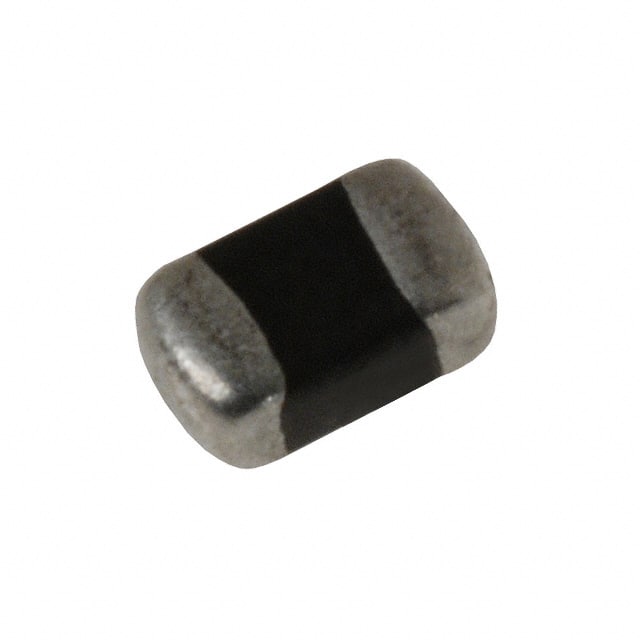

The Littelfuse V5.5MLA0805LNH is a surface-mount multilayer varistor (MLV) from the MLA Series, designed for transient voltage surge suppression at the circuit board level. It features a typical varistor voltage of 8.2V (minimum 7.1V, maximum 9.3V) and can handle a non-repetitive surge current of 40A (8/20µs waveform). The device is rated for 0.1J energy absorption (10/1000µs) and offers a capacitance of 660 pF at 1 MHz.
This varistor operates over a wide temperature range of -40°C to +125°C and is supplied in a leadless 0805 (2012 Metric) surface-mount package compatible with reflow and wave soldering. It provides inherent bi-directional clamping and is suitable for suppressing inductive switching, EFT, and surge voltage events.
The MLA Series is manufactured using Littelfuse multilayer ceramic technology and is Halogen-Free and RoHS compliant. The V5.5MLA0805LNH is typically used to protect integrated circuits and other components on power supply, control, and signal lines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.24 | $0.24 |
| 25+ | $0.22 | $0.22 |
| 100+ | $0.19 | $0.19 |
| 250+ | $0.18 | $0.18 |
| 500+ | $0.18 | $0.18 |
| 2,500+ | $0.17 | $0.17 |
| 5,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical varistor voltage is 8.2V, with a minimum of 7.1V and maximum of 9.3V.
It is rated for 40A non-repetitive surge current with an 8/20µs waveform.
The operating temperature range is -40°C to +125°C.
It is available in an 0805 (2012 Metric) surface-mount package.
The capacitance is 660 pF at 1 MHz.
