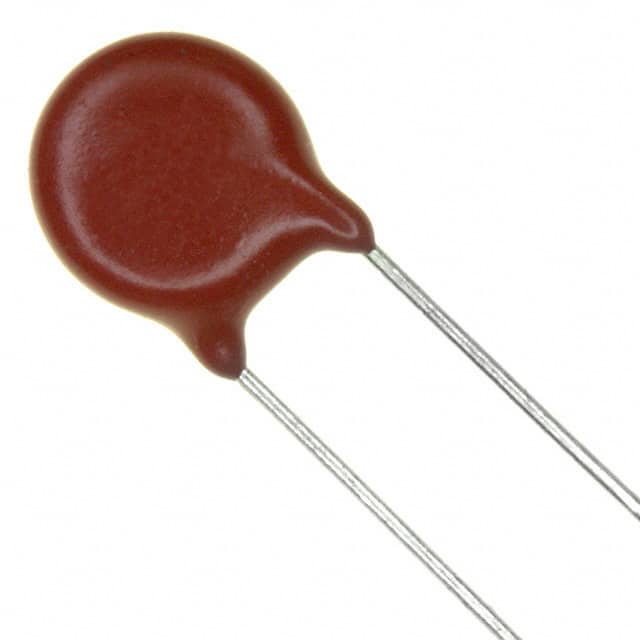

V47ZA3P The Littelfuse V47ZA3P is a ZA Series MOV with a typical varistor voltage of 47V, peak surge current of 500A (8/20µs), and energy rating of 4.5J (10/1000µs). Packaged in a Disc 10mm through-hole radial lead package.
Mfr Part #:

V47ZA3P

Available from 2 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse V47ZA3P is a ZA Series MOV with a typical varistor voltage of 47V, peak surge current of 500A (8/20µs), and energy rating of 4.5J (10/1000µs). Packaged in a Disc 10mm through-hole radial lead package.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.22 - $0.54

V47ZA3P Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 100 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

V47ZA3P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Capacitance @ Frequency
Current
Energy
Halogen Free
Lead Spacing
Lead Style
Maximum AC Volts
Maximum DC Volts
Mounting Type
Number of Circuits
Operating Temperature
Tape & Reel
Termination
Varistor Voltage (Max)
Varistor Voltage (Min)
Varistor Voltage (Typ)
View Similar Products (0)

V47ZA3P Description

Short technical summary and product information.

The Littelfuse V47ZA3P is a metal-oxide varistor from the ZA Series, designed to protect low and medium-voltage circuits from transient voltage surges. It has a typical varistor voltage of 47V at 1mA DC, with a range of 42.3V to 51.7V.



The varistor can handle a maximum AC voltage of 30V and a maximum DC voltage of 38V. It is rated for a peak surge current of 500A (8/20µs waveform) and an energy absorption of 4.5J (10/1000µs waveform). Typical capacitance is 2590pF at 1MHz.



The device operates across a temperature range of -55°C to +85°C and is housed in a 10mm disc package with through-hole mounting and radial leads. It is RoHS compliant, lead-free, and halogen-free.

V47ZA3P Quick Information

Product Type: Metal-Oxide Varistor (MOV)
Series: ZA
Canonical Name: Littelfuse V47ZA3P ZA Series Metal-Oxide Varistor, 47V (Typ), 500A, Disc 10mm, Radial Lead
Subcategory: Radial Lead Varistor

V47ZA3P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

V47ZA3P Estimated Pricing

Qty Low High
1+ $0.54 $0.54
10+ $0.38 $0.38
25+ $0.34 $0.34
100+ $0.30 $0.30
250+ $0.27 $0.27
500+ $0.26 $0.26
1,000+ $0.23 $0.23
2,000+ $0.22 $0.22
5,000+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

V47ZA3P Features

  • Typical varistor voltage of 47V.
  • Peak surge current rating of 500A.
  • Energy absorption of 4.5J.
  • Disc 10mm through-hole radial package.
  • RoHS compliant, lead-free and halogen-free.

V47ZA3P Applications

  • Transient voltage surge suppression for circuits.
  • Protection of power supply and motor control circuits.
  • Telecom and solenoid circuit protection.
  • Safeguarding circuit board components from surges.

V47ZA3P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the varistor voltage of the V47ZA3P?

The typical varistor voltage is 47V, with a minimum of 42.3V and maximum of 51.7V, measured at 1mA DC.

What are the maximum continuous voltage ratings?

The maximum AC voltage is 30V RMS and the maximum DC voltage is 38V.

What is the peak surge current rating?

The device can handle a peak surge current of 500A with an 8/20µs waveform.

What is the energy rating of this varistor?

The energy rating is 4.5J for a 10/1000µs current waveform.

What is the capacitance of the V47ZA3P?

The typical capacitance is 2590pF at 1MHz.

What is the operating temperature range?

The operating temperature range is -55°C to +85°C.
