| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,638 pcs
|
1638 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Efficiency (Typical @ Vin=48 V, Vout=12 V, Iout=4.2 A) | |
| Features | |
| Form Factor | |
| Height | |
| Input Under Voltage Lockout - Hysteresis | |
| Input Under-Voltage Lockout Turn-Off Threshold | |
| Input Under-Voltage Lockout Turn-On Threshold | |
| Isolation Voltage | |
| Length | |
| Maximum Input Current | |
| Mounting Type | |
| No Load Input Current | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Typical @ Vin=24 V) | |
| Output Voltage | |
| Package Type | |
| Power (Typical @ Vin=18 V to 36 V) | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

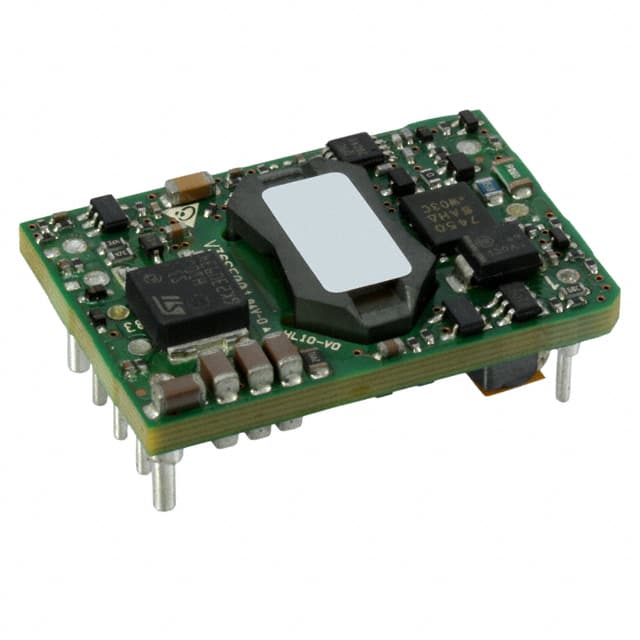

The Delta Electronics V36SE12004NRFA is a high-efficiency isolated DC-DC converter from the V36SE series. It accepts a wide 18V to 75V input range and delivers a regulated 12V output. At 48V input, it provides 4.2A (50W) with 88% typical efficiency; at 24V input, output is 3.5A (40W) with 86% efficiency. The module features 2250Vdc input-to-output isolation and includes protection against overcurrent, overvoltage, overtemperature, and input under-voltage lockout.
Housed in the industry-standard 1/16th brick form factor (33.0 x 22.8 x 8.0 mm), this through-hole module supports remote on/off control (active low) and output voltage trim. It is designed for commercial ITE applications such as optical transport, data networking, and communications equipment. The converter requires no minimum load and offers monotonic startup into pre-biased loads.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.70 | $27.70 |
| 5+ | $26.67 | $26.67 |
| 10+ | $26.24 | $26.24 |
| 25+ | $26.23 | $26.23 |
| 35+ | $25.04 | $25.04 |
| 105+ | $24.29 | $24.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating input voltage range is 18V to 75V.
The nominal output voltage is 12V. At 48V input, the typical output current is 4.2A (50W). At 24V input, the typical output current is 3.5A (40W).
Typical efficiency is 88% at 48V input (12V/4.2A) and 86% at 24V input (12V/3.5A).
The input-to-output isolation voltage is 2250Vdc minimum.
The case operating temperature range is -40°C to 122°C.
It comes in an 8-DIP 1/16 brick module with through-hole mounting.
The existing database lists it as RoHS3 Compliant, but this is unverified.
