| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,181 pcs
|
1181 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Under-Voltage Lockout (Turn-Off) | |
| Input Under-Voltage Lockout (Turn-On) | |
| Input Voltage (Nominal) | |
| Isolation Voltage | |
| Length | |
| Maximum Input Current | |
| Mounting Type | |
| No Load Input Current | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output 1 | |
| Width |

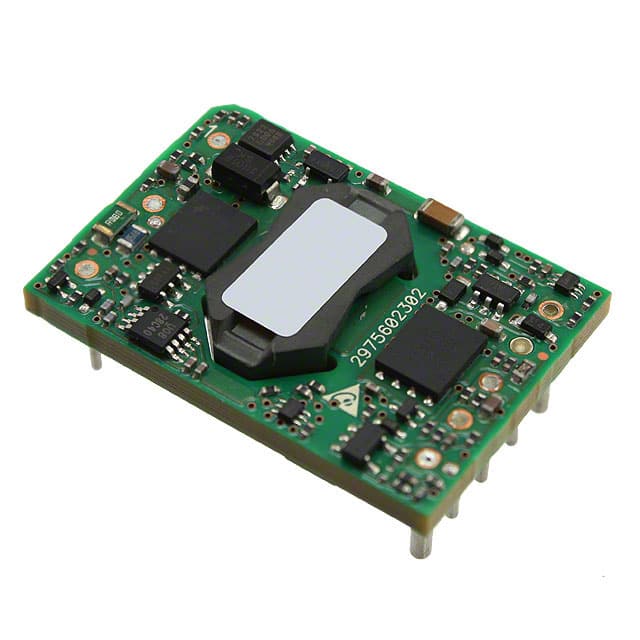

The V36SE05010NRFA from Delta Electronics is a 50W isolated DC/DC converter module in the industry-standard 1/16th brick form factor. It delivers a single regulated 5V output at up to 10A from a wide input voltage range of 18V to 75V, with a nominal input of 48V. The module achieves a typical efficiency of 91% at full load (48V input).
Key electrical features include input under-voltage lockout (UVLO), output over-current protection (OCP), over-temperature protection (OTP), and output over-voltage protection (OVP). The module supports remote on/off control with active low enable. The output voltage can be trimmed from -20% to +10% of the nominal value. No minimum load is required, and the module provides monotonic startup into normal and pre-biased loads.
The module offers 2250Vdc isolation between input and output. It is designed for through-hole mounting in an 8-DIP package compatible with 1/16th brick footprints. Dimensions are 33.0mm x 22.9mm x 9.4mm (1.30" x 0.90" x 0.37"). The operating ambient temperature range is -40°C to 119°C. The module is intended for commercial ITE (Information Technology Equipment) applications such as optical transport, data networking, communications, and servers.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.25 | $26.25 |
| 5+ | $25.50 | $25.50 |
| 10+ | $25.09 | $25.09 |
| 25+ | $24.99 | $24.99 |
| 35+ | $24.47 | $24.47 |
| 105+ | $24.38 | $24.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 75V, with a nominal input of 48V.
The output voltage is 5V and the maximum output current is 10A, providing 50W of power.
The module measures 33.0mm x 22.9mm x 9.4mm (1.30" x 0.90" x 0.37") and is a through-hole mounted 8-DIP module in a 1/16th brick package.
The operating ambient temperature range is -40°C to 119°C.
The module is marked as RoHS3 compliant, but this status is unverified and should be confirmed against official certification documents.
The module includes input under-voltage lockout (UVLO), output over-current protection (OCP), over-temperature protection (OTP), and output over-voltage protection (OVP).
The isolation voltage is 2250 Vdc.
