| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,175 pcs
|
1175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,175 pcs
|
1175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Halogen Free | |
| Industrial Grade | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

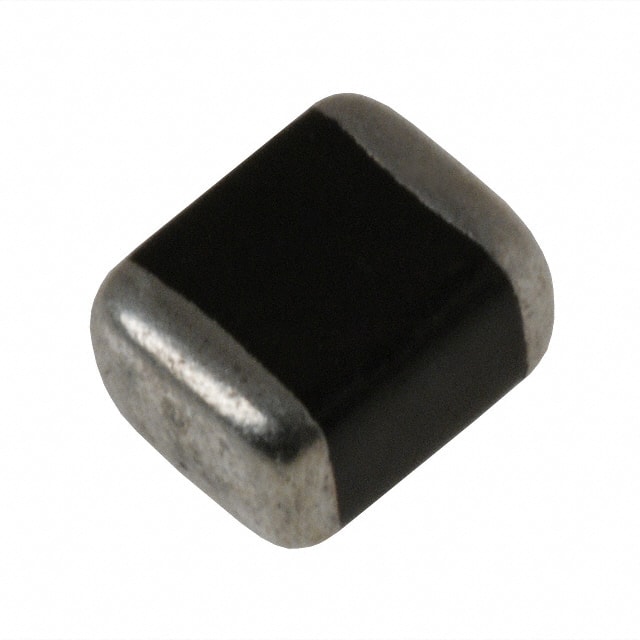

The V30MLA1210NH is a surface mount multilayer varistor (MLV) from Littelfuse's MLA Series. It is designed for transient voltage suppression in circuit board level applications. Key electrical specifications include a maximum DC voltage rating of 30V, maximum AC voltage rating of 25V, and a varistor voltage range of 35V (min) to 43V (max) with a typical value of 39V. The device can handle surge currents up to 280A (8/20 µs waveform) and surge energy up to 1.2J (10/1000 µs waveform). It has a typical capacitance of 900 pF at 1 MHz. The varistor is packaged in a 1210 (3225 Metric) surface mount package and operates over a temperature range of -40°C to 125°C. It is RoHS compliant and halogen-free. The MLA Series is suitable for suppression of inductive switching, EFT, and surge voltage events.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.96 | $0.96 |
| 100+ | $0.85 | $0.85 |
| 250+ | $0.80 | $0.80 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.74 | $0.74 |
| 2,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The varistor voltage is typically 39V, with a minimum of 35V and maximum of 43V.
30V DC.
25V AC.
280A for an 8/20 µs waveform.
1.2J for a 10/1000 µs waveform.
900 pF typical at 1 MHz.
-40°C to 125°C.
1210 (3225 Metric) surface mount package.
