| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133,000 pcs
|
133000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
184 pcs
|
184 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current (Per Diode) | |
| Current | |
| Diode Configuration | |
| Forward Voltage (Typical @ IF = 15 A) | |
| Forward Voltage (Typical @ IF=5 A) | |
| Isolation Voltage (ITO-220AB only) | |
| Junction Temperature Maximum | |
| Mounting Torque | |
| Mounting Type | |
| Non-Repetitive Avalanche Energy | |
| Operating Temperature | |
| Peak Forward Surge Current (8.3 ms) | |
| Peak Repetitive Reverse Current | |
| Polarity | |
| Repetitive Peak Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Terminal Finish | |
| Voltage | |
| Voltage Rate of Change |

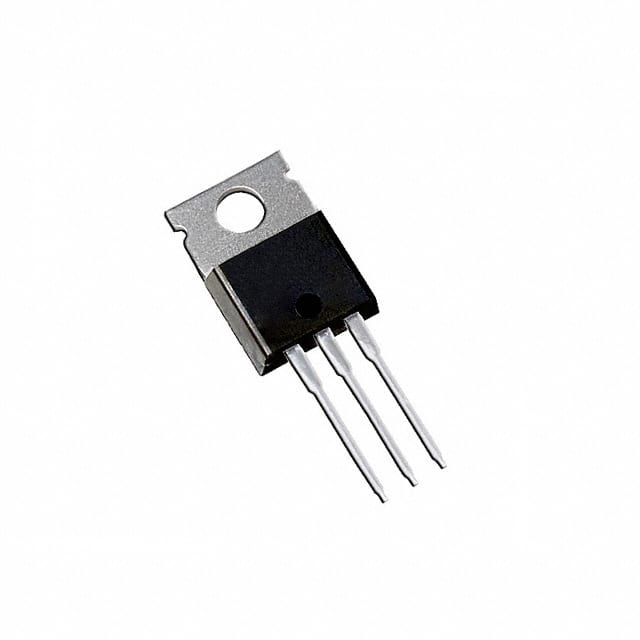

The V30200C-E3/4W is a dual high voltage TMBS (Trench MOS Barrier Schottky) rectifier from Vishay, featuring a common cathode configuration. It is designed for high efficiency and low power losses in power conversion applications.
Key electrical specifications include a repetitive peak reverse voltage of 200V, average rectified current of 15A per diode (30A total), and an ultra low forward voltage drop of 0.526V typical at 5A and 0.648V typical at 15A. The device offers high surge capability with a peak forward surge current of 250A and non-repetitive avalanche energy of 200mJ.
The rectifier is housed in a through-hole TO-220-3 (TO-220AB) package with matte tin plated terminals, compatible with solder bath temperatures up to 275°C. It operates over a junction temperature range of -40°C to 150°C and meets MSL level 1. The E3 suffix indicates RoHS compliance.
Typical applications include high frequency converters, switching power supplies, freewheeling diodes, OR-ing diodes, DC/DC converters, and reverse battery protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.46 | $3.46 |
| 10+ | $1.87 | $1.87 |
| 100+ | $1.55 | $1.55 |
| 500+ | $1.30 | $1.30 |
| 1,000+ | $1.28 | $1.28 |
| 10,000+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 V.
15 A (30 A total for the dual device).
0.648 V.
0.526 V.
250 A (8.3 ms single half sine-wave).
-40°C to 150°C.
TO-220-3 (TO-220AB).
