| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,203 pcs
|
8203 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Height Above Board | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

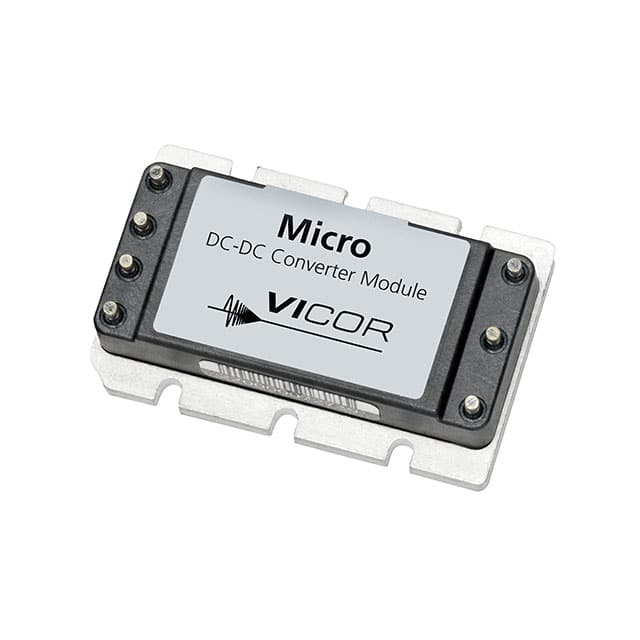

The Vicor V300C48T150BL is a high-performance isolated DC-DC converter module from the 300V Micro Family. It accepts a wide input voltage range of 180V to 375V DC and provides a regulated 48V output at up to 3.13A, delivering 150W of output power. The module features a typical efficiency of 88.2% with a maximum efficiency of 90%.
This converter employs zero-current-switching and zero-voltage-switching (ZCS/ZVS) architecture for low noise and high power density. It includes programmable output voltage (10-110%), overvoltage protection (OVP), undervoltage lockout (UVLO), and parallel capability with N+M fault tolerance. Load regulation is ±0.5% from no load to full load, and input-to-output isolation is rated at 3000Vrms.
The V300C48T150BL is packaged in a standard quarter brick form factor (57.9mm x 36.8mm x 12.7mm) with through-hole mounting. It is designed for commercial ITE (Information Technology Equipment) applications and operates over a temperature range of -40°C to +100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $418.26 | $418.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 48V DC with a maximum output current of 3.13A, providing 150W of output power.
The operating input voltage range is 180V to 375V DC, with a surge withstand of 400V for 100ms.
Typical efficiency is 88.2%, with a maximum efficiency of 90%.
The module is a through-hole quarter brick package measuring 57.9mm (2.28") in length, 36.8mm (1.45") in width, and 12.7mm (0.5") in height.
The operating temperature range is -40°C to +100°C.
The datasheet indicates RoHS compliance only with F or G pin options. The BL suffix uses Long Tin/Lead termination and is likely non-RoHS compliant.
It includes overvoltage protection (OVP) and undervoltage lockout (UVLO).
