| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,525 pcs
|
16525 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

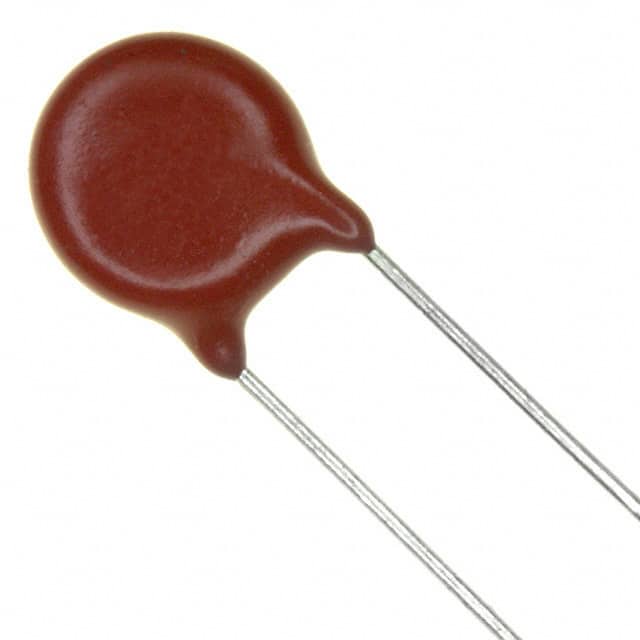

The Littelfuse V275LU10P is a radial lead metal-oxide varistor (MOV) from the LA Series, designed for continuous operation across AC power lines. It provides transient voltage surge suppression with a typical varistor voltage of 430V and a maximum AC voltage rating of 275V.
Key electrical specifications include a peak pulse current capability of 2.5kA (8/20µs waveform) and an energy absorption rating of 45J (10/1000µs waveform). The device operates over a temperature range of -55°C to 85°C and offers a typical capacitance of 200pF at 1MHz.
The V275LU10P is housed in a Disc 10mm package with through-hole mounting, making it suitable for compact PCB layouts. It is lead-free, halogen-free, and RoHS compliant, with UL1449 recognition.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum AC voltage rating is 275V.
The peak pulse current rating is 2.5kA for an 8/20µs waveform.
The package is Disc 10mm with through-hole mounting.
The operating temperature range is -55°C to 85°C.
Yes, it is RoHS3 compliant, lead-free, and halogen-free as verified in the datasheet.
