| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | 2200 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Tape & Reel | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |
The Littelfuse V271HA32 is a high-energy metal oxide varistor (MOV) designed for robust overvoltage protection in industrial and commercial applications. It features a typical varistor voltage of 430V, with a minimum of 387V and a maximum of 473V, ensuring reliable clamping performance. The device can handle a peak surge current of 25kA (8/20 µs waveform) and absorb up to 360J of energy, making it suitable for severe transient conditions.
This varistor is rated for a maximum AC voltage of 275V and a maximum DC voltage of 369V. It offers a capacitance of 2200 pF at 1 MHz, which is typical for high-energy MOVs. The operating temperature range spans from -55°C to 85°C, allowing use in a wide variety of environments.

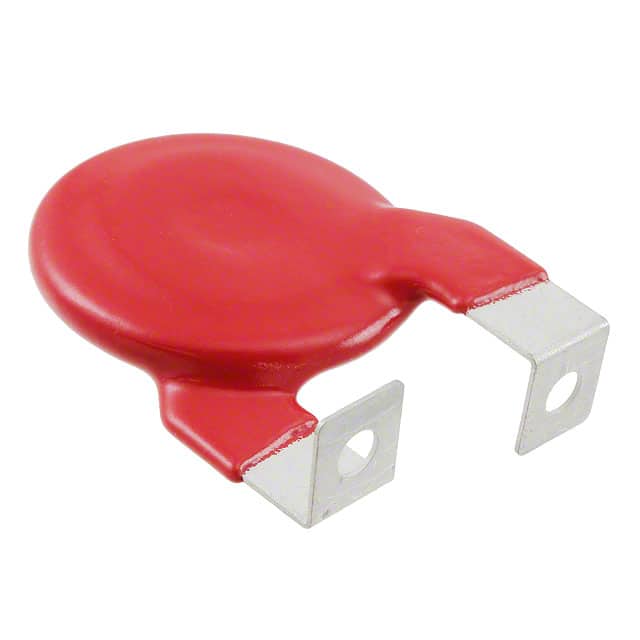

The V271HA32 is packaged in a 32mm disc with formed tabs, designed for bolt mounting. This package provides secure mechanical attachment and efficient heat dissipation during high-energy surge events. It is a single-circuit device, ideal for line-to-line or line-to-ground protection in power distribution systems.
| Qty | Low | High |
|---|---|---|
| 180+ | $12.17 | $12.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical varistor voltage is 430V, with a minimum of 387V and a maximum of 473V.
The peak surge current rating is 25kA.
The energy rating is 360J.
The package is a Disc 32mm with formed tabs, and the mounting type is bolt mount.
The maximum AC voltage is 275V, and the maximum DC voltage is 369V.
The operating temperature range is -55°C to 85°C.
