| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Halogen Free | |
| Lead Style | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Varistor Voltage | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

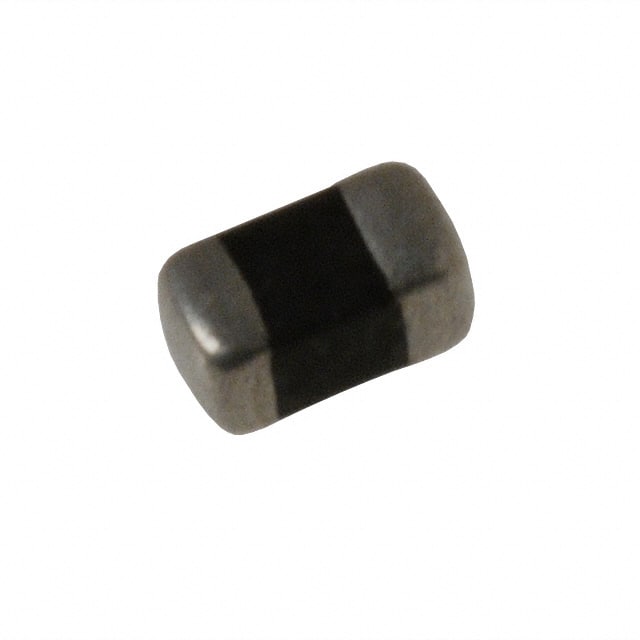

The V26MLA0603NH is a surface mount multilayer varistor (MLV) from Littelfuse's MLA Series. It is designed for transient voltage suppression at the circuit board level, protecting ICs from surges and ESD events. This component features a varistor voltage of 31V min, 34.5V typ, 38V max at 1 mA DC. It can handle a maximum DC voltage of 26V and maximum AC voltage of 20V RMS. The surge current rating is 30A (8/20µs waveform) and energy rating is 0.1J (10/1000µs waveform). Capacitance is 110 pF typical at 1 MHz. Operating temperature range is -40°C to +125°C. The package is 0603 (1608 Metric) surface mount, leadless, compatible with reflow and wave soldering. It is RoHS and Halogen-Free compliant. Typical applications include suppression of inductive switching transients, EFT, and surge voltage on power supply, control, and signal lines, as well as ESD protection per IEC 61000-4-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.32 | $0.32 |
| 25+ | $0.28 | $0.28 |
| 100+ | $0.24 | $0.24 |
| 250+ | $0.23 | $0.23 |
| 500+ | $0.22 | $0.22 |
| 1,000+ | $0.21 | $0.21 |
| 2,500+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC voltage is 26V.
The varistor voltage is 31V minimum, 34.5V typical, and 38V maximum at 1 mA DC.
The surge current rating is 30A for an 8/20 µs waveform.
It comes in a surface mount 0603 (1608 Metric) package.
Capacitance is 110 pF typical at 1 MHz.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS3 compliant and Halogen-Free as per the datasheet.
