| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
239 pcs
|
239 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Contact Material | |
| Mounting Type | |
| Rated Current | |
| Rated Voltage |

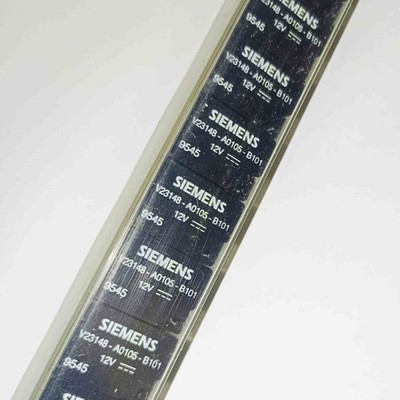

The Siemens V23148-A0105-B101 is a general-purpose PCB relay designed for various applications including heating control and installation. It features a 1 Form C (CO), 1 Form A (NO), or 1 Form B (NC) contact arrangement, providing flexibility for different circuit needs.
This relay has a rated voltage of 250VAC and a maximum switching voltage of 400VAC, with a rated current of 7A. The contact material is AgNi 90/10, ensuring reliable performance. It operates with a coil voltage range of 5 to 48 VDC and has a mechanical endurance exceeding 20 million operations.
The V23148 series relays are available in bistable and DC versions, and some are wash-tight. This specific model is through-hole mounted, facilitating integration into PCB designs. Typical applications include battery-powered equipment and general control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for this relay is 7A.
The maximum switching voltage is 400VAC.
The contact material is AgNi 90/10.
The coil voltage range is 5 to 48 VDC.
The mechanical endurance is greater than 20 million operations.
It has a 1 Form C (CO), 1 Form A (NO), or 1 Form B (NC) contact arrangement.
