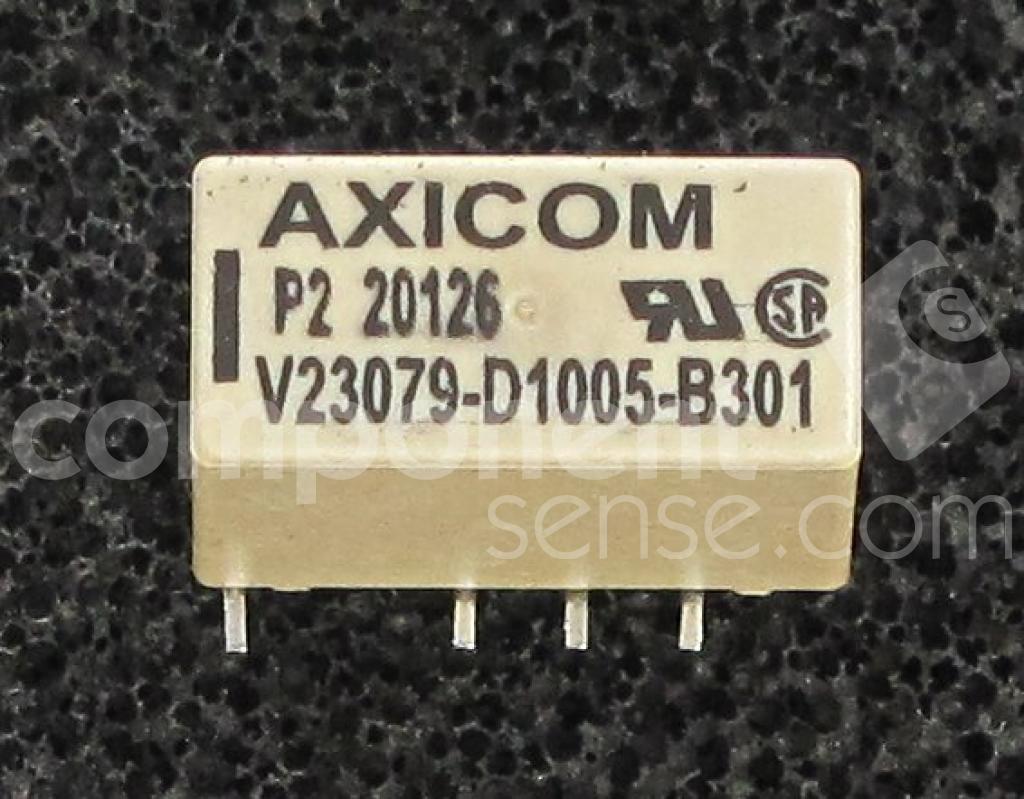

V23079D1005B301 The TE Connectivity V23079D1005B301 is a DPDT electromechanical relay with a 24VDC coil voltage and a 2A contact current rating. It features a Surface Mount termination.
Mfr Part #:

V23079D1005B301

Available from 2 distributors
Mfr Name: Siemens
Siemens
The TE Connectivity V23079D1005B301 is a DPDT electromechanical relay with a 24VDC coil voltage and a 2A contact current rating. It features a Surface Mount termination.
✓ Total Stock: 244 pcs
$ Price Range: $0.99

V23079D1005B301 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
194 pcs
On Request
194 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

V23079D1005B301 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Resistance
Coil Type
Contact Material
Contact Plating
Depth
Height
Length
Mount
Mounting Type
Number of Contacts
Number of Pins
Operate Time
Power Consumption
Termination
Termination Style
Width
View Similar Products (0)

V23079D1005B301 Description

Short technical summary and product information.

The TE Connectivity V23079D1005B301 is a non-latching electromechanical relay designed for signal applications. It operates with a 24VDC coil voltage and has a coil resistance of 4.114 kΩ, consuming 140 mW of power.



The relay features a DPDT (Double Pole Double Throw) configuration with a contact current rating of 2A and a switching current of 5A. The contacts are made of Gold, Silver material with Gold plating. It has a maximum AC voltage rating of 250V and a maximum DC voltage rating of 220V.



This relay is designed for surface mounting with Gull Wing termination. It operates within an ambient temperature range of -40°C to 85°C. The dimensions are 14.5mm in length, 7.2mm in width, 10.55mm in height, and 9.4mm in depth. The operate time is 4ms.



Environmental compliance includes RoHS3 compliance and MSL 1 Unlimited. The part is listed with a lifecycle status of Production and Manufacturer Lifecycle Status of ACTIVE.

V23079D1005B301 Quick Information

Product Type: Electromechanical Relay
Canonical Name: TE Connectivity V23079D1005B301 Electromechanical Relay
Subcategory: Signal Relay

V23079D1005B301 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

V23079D1005B301 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

V23079D1005B301 Features

  • DPDT electromechanical relay with 24VDC coil.
  • 2A contact current rating, 5A switching current.
  • Surface Mount termination with Gull Wing leads.
  • Operates from -40°C to 85°C ambient temperature.
  • RoHS3 Compliant and MSL 1 Unlimited.

V23079D1005B301 Applications

  • Suitable for signal switching applications.
  • Designed for compact electronic assemblies.
  • Used in control and automation systems.
  • Ideal for low-power switching needs.

V23079D1005B301 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the V23079D1005B301 relay?

The coil voltage for the V23079D1005B301 relay is 24 VDC.

What is the contact current rating of the V23079D1005B301 relay?

The contact current rating of the V23079D1005B301 relay is 2 A.

What type of termination does the V23079D1005B301 relay use?

The V23079D1005B301 relay uses Gull Wing termination.

What is the operating temperature range for this relay?

The operating temperature range for this relay is -40 °C to 85 °C.

Is the V23079D1005B301 relay RoHS compliant?

The V23079D1005B301 relay is RoHS3 Compliant.
