| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

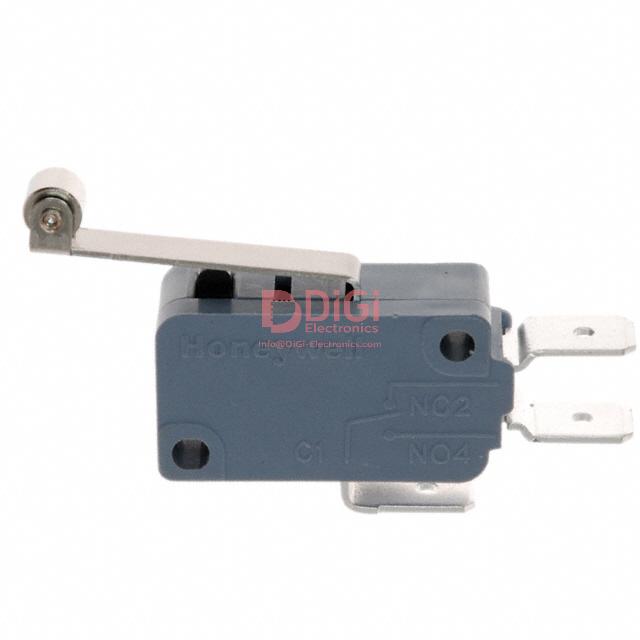

This Honeywell V15T16-CZ300A06-K is a snap action switch designed for reliable electrical switching. It features a Single Pole Double Throw (SPDT) circuit configuration, making it suitable for various control applications.
The switch is rated for a current of 16A at 250V AC, ensuring robust performance in demanding environments. Its mechanical characteristics include a chassis mount for secure installation and a lever/roller actuator for precise operation. The operating force is 180gf, with a release force of 30gf, and it has specific pretravel, overtravel, and differential travel specifications.
With an operating temperature range of -25°C to 125°C, this switch is built to withstand a variety of environmental conditions. The termination style is Quick Connect - 0.250" (6.3mm), facilitating easy and secure connections.
Key specifications include its SPDT circuit, 16A current rating, 250V AC voltage rating, and chassis mounting. The actuator type is lever/roller, and it operates with an 'On-Mom' function. This switch is part of the V15 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a current rating of 16A (AC).
The voltage rating is 250V AC.
It features a lever and roller actuator.
The switch is designed for chassis mounting.
The operating temperature range is -25°C to 125°C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
