| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

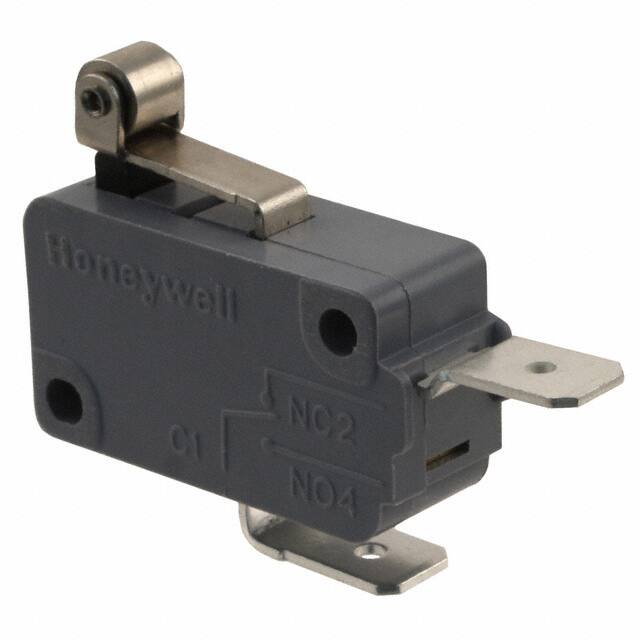

This Honeywell V15T16-CC100A05-K is a snap action switch designed for reliable operation in demanding environments. It features a Single Pole Single Throw Normally Closed (SPST-NC) circuit configuration, capable of handling a current rating of 16A at 250V AC.
The switch operates within a wide temperature range, from -25°C to 125°C, making it suitable for various industrial and commercial applications. Key mechanical specifications include a pretravel of 0.063" (1.6mm), a release force of 20gf, and a differential travel of 0.016" (0.4mm).
Designed for chassis mounting, this switch utilizes quick connect termination with a 0.250" (6.3mm) size. The actuator type is a lever with a roller, providing a versatile interface for mechanical actuation. Its RoHS3 compliance indicates adherence to environmental regulations regarding hazardous substances.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 16A AC.
The voltage rating is 250V.
It operates between -25°C and 125°C.
It features an SPST-NC (Single Pole Single Throw Normally Closed) circuit.
The pretravel is 0.063 inches (1.6mm).
The release force is 20gf.
The differential travel is 0.016 inches (0.4mm).
