| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

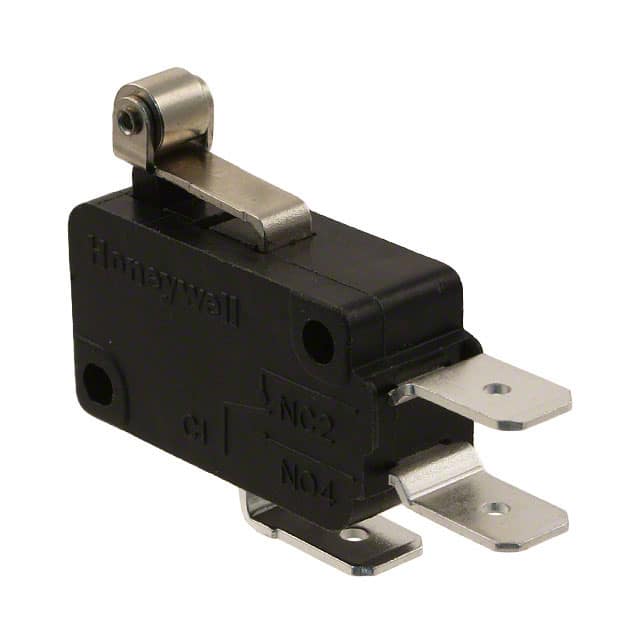

This Honeywell limit switch, part number V15H22-CZ100A05-K, is designed for reliable operation in demanding applications. It features a Single Pole Double Throw (SPDT) circuit configuration and an On-Mom switch function.
The switch is rated for a current of 22A AC and a voltage of 250V AC. Its mechanical specifications include a chassis mount type and quick connect termination style with a 0.250" (6.3mm) width. The actuator type is a lever with a roller, offering precise actuation.
Operating temperature ranges from -25°C to 150°C, making it suitable for a wide array of environmental conditions. The pretravel is 0.063" (1.6mm), differential travel is 0.016" (0.4mm), and overtravel is 0.030" (0.76mm). The operating force is 120gf, and the release force is 20gf.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a current rating of 22A.
The voltage rating is 250V.
It features a lever and roller actuator.
The operating temperature range is -25°C to 150°C.
It uses chassis mounting.
It features quick connect terminals of 0.250" (6.3mm).
