| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
625 pcs
|
625 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Halogen Free | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Temperature Coefficient of Clamping Voltage | |
| Termination Style | |
| Varistor Voltage | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

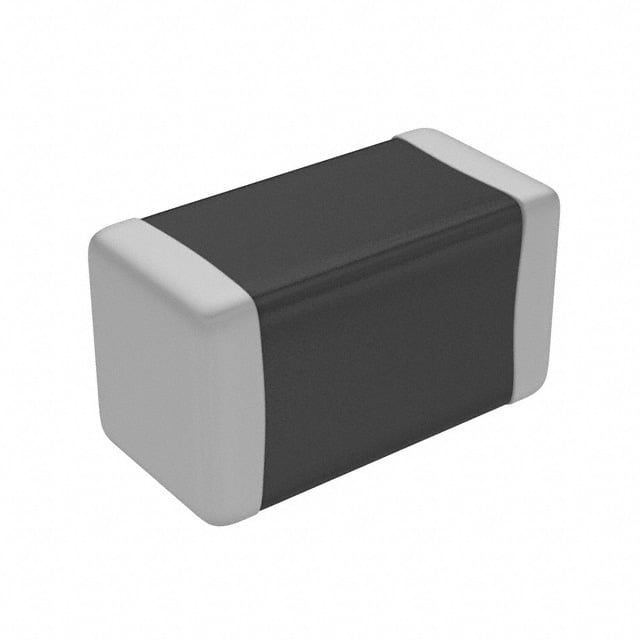

The V14MLA1206WH is a surface mount multilayer varistor (MLV) from Littelfuse's MLA series. It is designed to suppress transient voltage events such as EFT and surge at the circuit board level.
Key electrical specifications include a varistor voltage of 18.1V typical (15.9V min, 20.3V max), maximum DC voltage of 14V, and maximum AC voltage of 10V. It can handle a surge current of 150A (8/20µs waveform) and surge energy of 0.4J (10/1000µs waveform). Typical capacitance is 1200pF at 1 MHz.
The device is housed in a standard 1206 (3216 Metric) surface mount package and is compatible with reflow and wave soldering processes. It operates over a temperature range of -40°C to +125°C and has a storage temperature range of -40°C to +150°C. The temperature coefficient of clamping voltage is less than 0.01%/°C.
The varistor voltage is 18.1V typical, with a minimum of 15.9V and maximum of 20.3V.
The maximum surge current is 150A for an 8/20µs waveform.
The operating temperature range is -40°C to +125°C.
It is available in a 1206 (3216 Metric) surface mount package.
Yes, it is RoHS3 compliant and Halogen-Free as per the datasheet.
