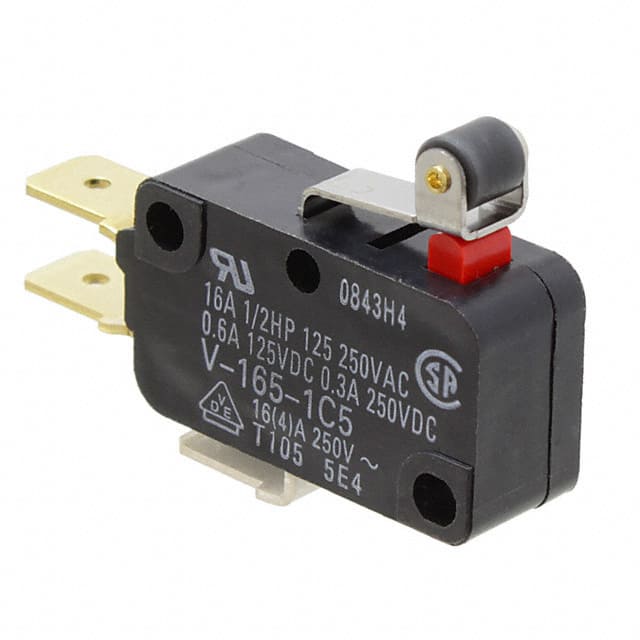

V-165-1C5 The Omron V-165-1C5 is a miniature basic switch with a 16A 250V rating and SPDT circuit. It features a lever actuator and quick connect terminals.
Mfr Part #:

V-165-1C5

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron V-165-1C5 is a miniature basic switch with a 16A 250V rating and SPDT circuit. It features a lever actuator and quick connect terminals.
✓ Total Stock: 60,000 pcs
$ Price Range: $0.75

V-165-1C5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
60,000 pcs
On Request
60000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

V-165-1C5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Pretravel
Release Force
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

V-165-1C5 Description

Short technical summary and product information.

The Omron V-165-1C5 is a miniature basic switch designed for high reliability and security. It offers a current rating of 16A at 250V AC and features a Single Pole Double Throw (SPDT) contact form.



This switch is equipped with a lever roller actuator and utilizes quick connect terminals for easy termination. It is designed for chassis mounting and operates within a temperature range of -25°C to 80°C. The switch has an ingress protection rating of IP40.



Key mechanical specifications include an operating force of 240gf, a release force of 50gf, a pretravel of 0.063" (1.6mm), an overtravel of 0.030" (0.76mm), and a differential travel of 0.025" (0.6mm). It is suitable for applications requiring reliable switching under various conditions.

V-165-1C5 Quick Information

Product Type: Miniature Basic Switch
Canonical Name: Omron V-165-1C5 Miniature Basic Switch
Subcategory: Basic Switch

V-165-1C5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

V-165-1C5 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

V-165-1C5 Features

  • 16A 250V AC rating for power switching.
  • SPDT circuit for versatile control.
  • Lever roller actuator for actuation.
  • Quick connect terminals for easy wiring.
  • Chassis mount for secure installation.

V-165-1C5 Applications

  • Suitable for door open/closed detection.
  • Used in general industrial automation.
  • Ideal for control panel applications.
  • Reliable for limit sensing tasks.

V-165-1C5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Omron V-165-1C5 switch?

The Omron V-165-1C5 switch has a current rating of 16A at 250V AC and 600mA at DC.

What is the operating voltage for the V-165-1C5?

The operating voltage for the V-165-1C5 is 250V AC.

What is the operating temperature range of this switch?

The operating temperature range for the V-165-1C5 is -25°C to 80°C.

What type of actuator does the V-165-1C5 feature?

The V-165-1C5 features a lever roller actuator.

How is the V-165-1C5 switch mounted?

The V-165-1C5 switch is designed for chassis mounting.

What is the contact form of the V-165-1C5?

The V-165-1C5 has an SPDT (Single Pole Double Throw) contact form.
