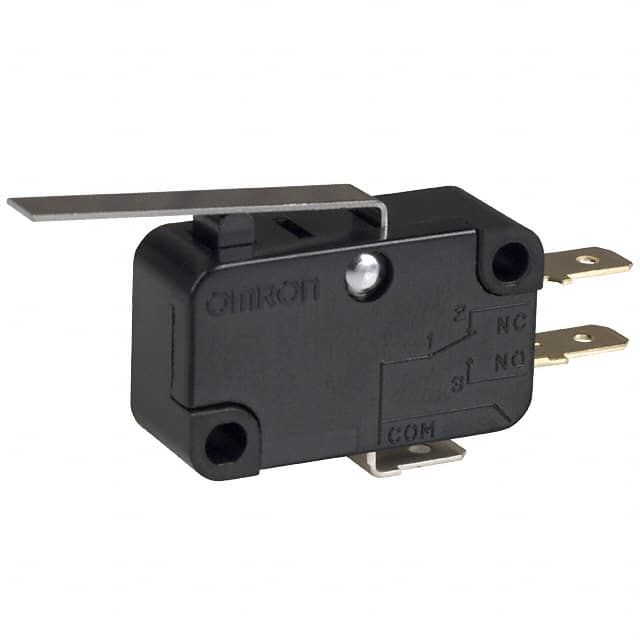

V-152-1C25 The Omron V-152-1C25 is a snap action switch with an SPDT circuit, rated for 15A at 250VAC. It features a straight lever actuator and quick connect terminals.
Mfr Part #:

V-152-1C25

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron V-152-1C25 is a snap action switch with an SPDT circuit, rated for 15A at 250VAC. It features a straight lever actuator and quick connect terminals.
✓ Total Stock: 20,600 pcs
$ Price Range: $0.75

V-152-1C25 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
20,600 pcs
On Request
20600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

V-152-1C25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Contact Form
Current Rating (Amps)
Differential Travel
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Pretravel
Ratings
Release Force
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

V-152-1C25 Description

Short technical summary and product information.

The Omron V-152-1C25 is a miniature basic switch designed for high reliability and security. It features a Single Pole Double Throw (SPDT) circuit and is rated for a current of 15A at 250VAC, with a DC rating of 600mA. The switch is equipped with a straight lever actuator and utilizes quick connect terminals for termination.



This snap action switch has an operating force of 125gf, a pretravel of 0.157" (4.0mm), and an overtravel of 0.062" (1.6mm). It also has a differential travel of 0.060" (1.5mm) and a release force of 14gf. The operating temperature range is from -25°C to 80°C, and it offers an IP40 ingress protection rating.



The V-152-1C25 is designed for chassis mounting and is part of the 'V' series. It is suitable for applications requiring reliable switching, such as interrupting current when doors are opened or closed. The switch is available with various terminal styles, including solder and quick connect options.

V-152-1C25 Quick Information

Product Type: Snap Action Switch
Canonical Name: Omron V-152-1C25 SPDT Lever Actuator Snap Action Switch
Subcategory: Switches

V-152-1C25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

V-152-1C25 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

V-152-1C25 Features

  • SPDT circuit for versatile switching.
  • 15A 250VAC current and voltage rating.
  • Straight lever actuator for actuation.
  • Quick connect terminals for easy connection.
  • Chassis mount for secure installation.

V-152-1C25 Applications

  • Interrupting current in control circuits.
  • Door open/closed detection switches.
  • General purpose industrial automation.
  • Equipment control panel integration.

V-152-1C25 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Omron V-152-1C25 switch?

The Omron V-152-1C25 switch has a current rating of 15A at 250VAC and 600mA at 250VDC.

What is the voltage rating for the V-152-1C25 snap action switch?

The voltage rating for the V-152-1C25 snap action switch is 250V.

What is the operating temperature range for this Omron switch?

The operating temperature range for the V-152-1C25 switch is -25°C to 80°C.

What type of actuator does the V-152-1C25 switch have?

The V-152-1C25 switch features a straight lever actuator.

What are the terminal styles available for the V-152-1C25?

The V-152-1C25 switch is available with solder terminals, quick-connect terminals (#187), and quick-connect terminals (#250).

What is the circuit type of the V-152-1C25 snap action switch?

The V-152-1C25 snap action switch has an SPDT (Single Pole Double Throw) circuit.

How is the V-152-1C25 switch mounted?

The V-152-1C25 switch is designed for chassis mounting.
