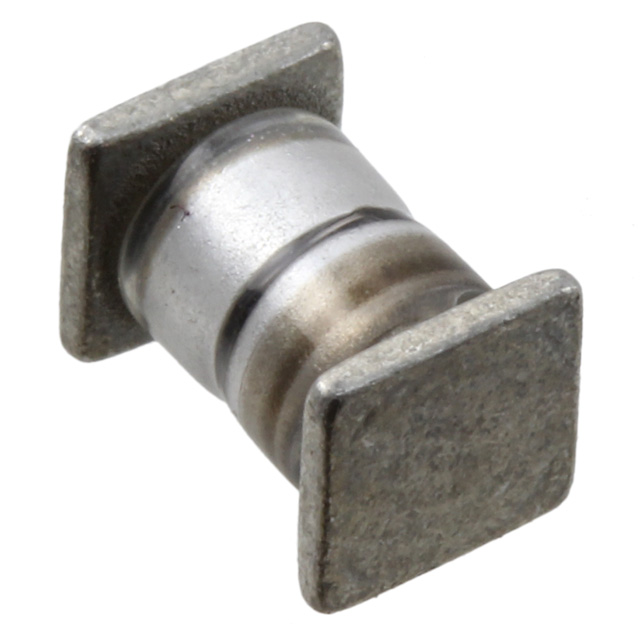

UZ120SMT2 The UZ120SMT2 is a Zener Diode from Microsemi Corporation with a nominal voltage of 200V and a power rating of 3W. It features a surface mount package.
Mfr Part #:

UZ120SMT2

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The UZ120SMT2 is a Zener Diode from Microsemi Corporation with a nominal voltage of 200V and a power rating of 3W. It features a surface mount package.
✓ Total Stock: 1 pcs
$ Price Range: $2.27

UZ120SMT2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 538 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UZ120SMT2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

UZ120SMT2 Description

Short technical summary and product information.

The UZ120SMT2 is a Zener Diode manufactured by Microsemi Corporation. This component is designed for voltage regulation applications, featuring a nominal Zener voltage of 200V and a maximum power dissipation of 3W. It offers a tolerance of ±5% and a typical reverse leakage current of 1µA at 152V.



The Zener Diode operates within a temperature range of -65°C to 175°C. It is housed in a SQ-MELF, A package and is designed for surface mounting, making it suitable for various electronic circuits where stable voltage reference is required.



Key electrical characteristics include a typical Zener impedance of 950 Ohms at the specified test condition. The component's construction and specifications make it a reliable choice for power supply regulation and voltage clamping circuits.

UZ120SMT2 Quick Information

Product Type: Zener Diode
Canonical Name: UZ120SMT2 Zener Diode
Subcategory: Zener Diode

UZ120SMT2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UZ120SMT2 Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

UZ120SMT2 Features

  • 200V nominal Zener voltage.
  • 3W maximum power dissipation.
  • ±5% voltage tolerance.
  • Surface mountable SQ-MELF, A package.
  • Wide operating temperature range.

UZ120SMT2 Applications

  • Used in voltage regulation circuits.
  • Suitable for surge suppression applications.
  • Ideal for power supply overvoltage protection.
  • Applicable in industrial control systems.
  • Used in electronic test equipment.

UZ120SMT2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the UZ120SMT2?

The nominal Zener voltage is 200 V.

What is the maximum power dissipation for the UZ120SMT2?

The maximum power dissipation is 3 W.

What is the operating temperature range for this Zener Diode?

The operating temperature range is -65°C to 175°C.

How is the UZ120SMT2 mounted?

It is a surface mount device.

What is the package type for the UZ120SMT2?

The package is SQ-MELF, A.
