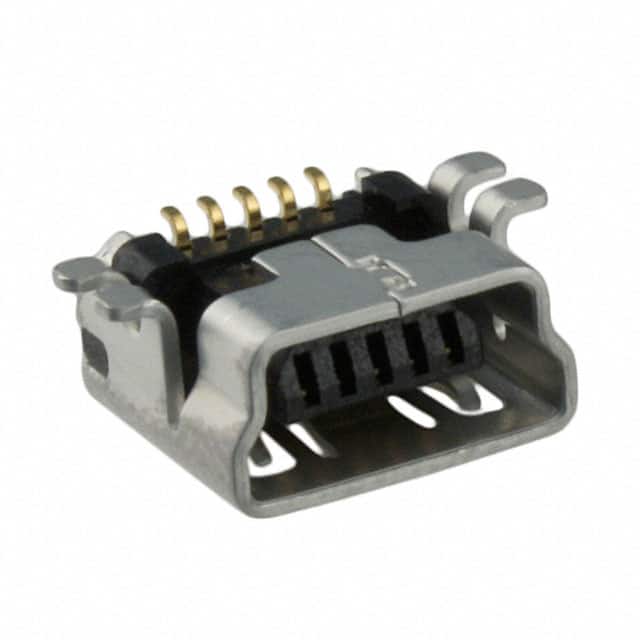

The UX60SC-MB-5ST(80) is a USB 2.0 Mini-B receptacle from the UX60S series by Hirose Electric. It is designed for high-speed data transmission up to 480 Mbps, meeting the USB 2.0 standard. The connector features a compact 7mm length, reducing board space requirements.
Key specifications include 5 contacts, 1 port, shielded construction, and solder retention for secure mounting. Electrical ratings are 1A current and 30VAC voltage. The receptacle offers a contact resistance of 50 mΩ max, insulation resistance of 100 MΩ min, and withstanding voltage of 100 VAC per minute. Capacitance is 2 pF max.
Mechanically, the connector is surface mount with right angle orientation and horizontal mounting feature. It supports 5000 mating cycles with an insertion force of 35 N max and withdrawal force of 7 N min. Operating temperature range is -30°C to 75°C. The termination style is solder.
Packaging is provided on tape-and-reel for automated assembly. The connector is RoHS compliant and suitable for applications such as personal computer peripherals, digital cameras, MP3 players, and portable terminals. The shielded design helps reduce electromagnetic interference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.57 | $0.57 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.51 | $0.51 |
| 250+ | $0.48 | $0.48 |
| 500+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 A.
30 VAC.
Surface mount, right angle, horizontal.
5 contacts.
Yes, shielded.
-30°C to 75°C.
5000 cycles.
