| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Connector Type | |
| Contact Resistance | |
| Current Rating | |
| Durability | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature Range | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

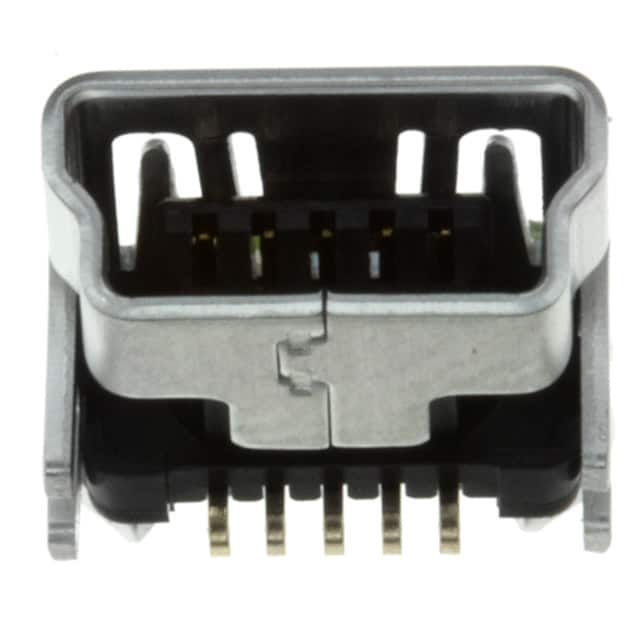

The Hirose UX60SC-MB-5S8 is a USB 2.0 Mini-B receptacle connector from the UX60S series. It features a surface mount, right-angle design with 5 contacts and solder retention for reliable board attachment. This connector supports USB 2.0 data rates up to 480 Mbps.
Electrical specifications include a current rating of 100 mA, voltage rating of 100 V DC, contact resistance of 50 mΩ max, insulation resistance of 100 MΩ min, and capacitance of 2 pF max. The connector is rated for 5000 mating cycles with insertion force of 35 N max and withdrawal force of 7 N min.
The connector is packaged in tape and reel for automated assembly. It operates over a temperature range of -55°C to +85°C. The UX60S series is designed for applications such as personal computer peripherals, data terminals, portable terminals, digital cameras, and MP3 players.
The UX60SC-MB-5S8 is RoHS compliant and meets USB 2.0 standard requirements. Its compact size reduces board space compared to other Hirose versions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.80 | $0.80 |
| 25+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 mA.
100 V DC.
Surface mount, right-angle.
5 contacts.
-55°C to +85°C.
5000 cycles.
Yes, RoHS3 compliant.
