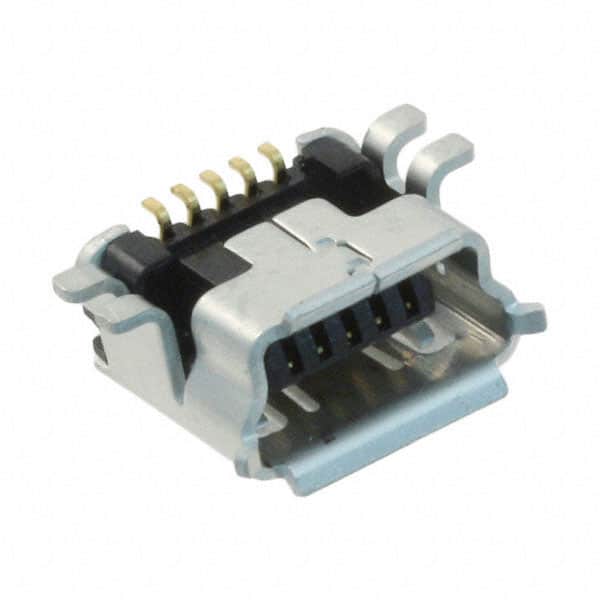

The Hirose UX60SA-MB-5ST(80) is a USB 2.0 Mini-B receptacle designed for surface mount right angle mounting. It features 5 contacts with solder termination and solder retention for secure attachment. The connector is rated for 100 mA per contact and offers a maximum contact resistance of 50 mΩ (initial) and 70 mΩ after durability. Insulation resistance is a minimum of 100 MΩ, and withstanding voltage is 100 V AC for 1 minute without flashover or breakdown. Capacitance between adjacent contacts is limited to 2 pF.
Mechanical durability is rated at 5000 mating cycles, with a maximum insertion force of 35 N and a minimum withdrawal force of 7 N (initial) and 3 N after durability. The operating temperature range is -55°C to +85°C. The receptacle measures 7 mm in overall length and is packaged in Tape & Reel for automated assembly.
Typical applications include personal computer peripherals, data terminals, portable terminals, digital cameras, and MP3 players. The component is RoHS compliant and meets the USB 2.0 standard for data transmission rates up to 480 Mbps.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.85 | $1.85 |
| 10+ | $1.60 | $1.60 |
| 25+ | $1.43 | $1.43 |
| 100+ | $1.36 | $1.36 |
| 250+ | $1.27 | $1.27 |
| 500+ | $1.21 | $1.21 |
| 1,000+ | $1.06 | $1.06 |
| 2,000+ | $0.99 | $0.99 |
| 5,000+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB - mini B, receptacle.
5 contacts.
Surface Mount, Right Angle, Horizontal.
USB 2.0.
100 mA per contact.
-55°C to +85°C.
5000 cycles minimum.
