| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | UNK | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage |

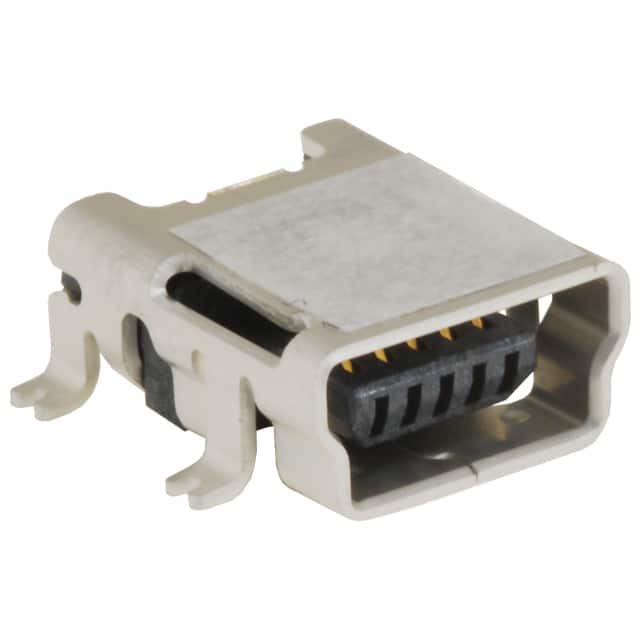

The Hirose Electric UX60A-MB-5ST is a USB 2.0 Mini B receptacle connector designed for high-speed data transmission up to 480 Mbps. It features 5 contacts in a single port configuration with surface mount, right angle mounting for space-constrained PCB designs.
This connector is shielded to reduce electromagnetic interference and includes solder retention features for reliable mechanical attachment. It is rated for 1 A current and 5 VAC voltage, with a robust 5000 mating cycle durability. The operating temperature range spans -30°C to 75°C, suitable for a variety of environments.
The UX60A-MB-5ST is part of Hirose's UX series, certified to USB 2.0 standards. Its right angle orientation and SMD termination make it ideal for compact electronic devices where low profile and reliable connectivity are required.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB - mini B receptacle.
5 contacts.
Surface mount, right angle.
Yes, it is shielded.
1 A.
5 VAC.
-30°C to 75°C.
