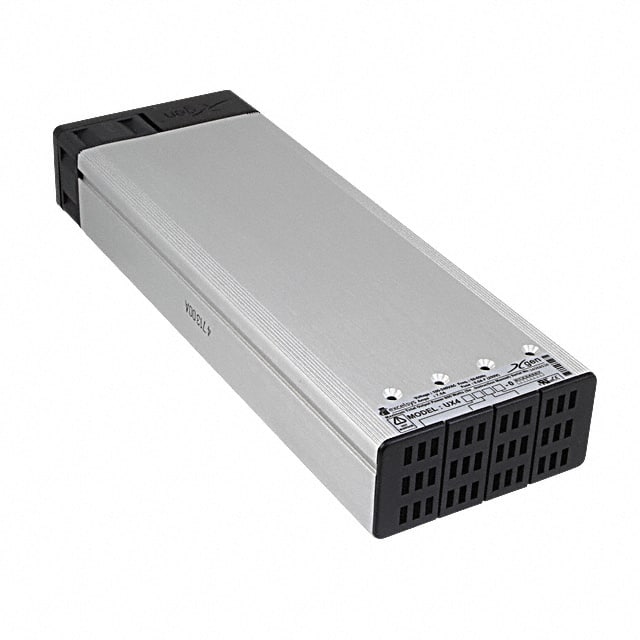

The Advanced Energy UX4 is part of the Excelsys UltiMod series, offering a configurable modular power supply solution. This chassis delivers up to 600W and can be populated with up to four powerMods, providing flexibility for various applications. It features a wide input voltage range of 85-264 VAC and achieves a high efficiency of up to 91%.
Designed for demanding requirements, the UX4 meets both medical and industrial certifications, including UL/EN60601-1, UL/EN60601-1-2, UL/EN60950, and IEC62368-1. It offers standard medical features such as 2 MOPP and 4 KV isolation, with leakage current below 300 µA. The unit operates from -40°C startup temperature and has a low profile, fitting within <1U height.
Key features include active PFC, user and field configurability, and options for conformal coating and ruggedization. Typical applications span medical equipment like clinical diagnostic devices and medical lasers, as well as industrial uses such as test and measurement, industrial machines, and telecommunications.
The UX4 chassis delivers up to 600 W.
The UX4 chassis operates from 85 ~ 264 VAC.
The UX4 chassis offers a maximum efficiency of up to 91%.
The UX4 chassis operates from -40°C to 70°C with derating.
The UX4 chassis holds UL/EN60601-1, UL/EN60601-1-2, UL/EN60950, and IEC62368-1 certifications.
The UX4 chassis provides 4 KV isolation.
The leakage current is less than 300 µA.
