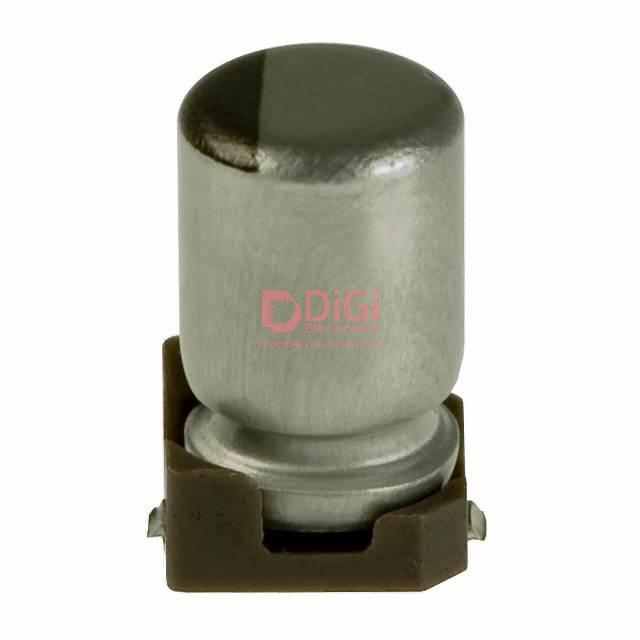

UWX1C100MCR2GB The Nichicon UWX1C100MCR2GB is an aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 16V. It features a ±20% tolerance and is designed for surface mounting.
Mfr Part #:

UWX1C100MCR2GB

Available from 1 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UWX1C100MCR2GB is an aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 16V. It features a ±20% tolerance and is designed for surface mounting.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.81

UWX1C100MCR2GB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UWX1C100MCR2GB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Diameter
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
Tolerance
View Similar Products (0)

UWX1C100MCR2GB Description

Short technical summary and product information.

This Nichicon UWX1C100MCR2GB is an aluminum electrolytic capacitor from the UWX series. It offers a capacitance of 10µF with a tolerance of ±20% and a rated voltage of 16V.



The capacitor is designed for surface mount applications with a Radial, Can - SMD package. Its dimensions are 3.00mm in diameter and a seated height of 5.40mm. The land size for surface mounting is 3.30mm x 3.30mm.



Key electrical characteristics include a ripple current of 18mA at 120Hz and 27mA at 10kHz. It operates within a temperature range of -40°C to 85°C and has a rated lifetime of 2000 hours at 85°C.

UWX1C100MCR2GB Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: UWX
Canonical Name: Nichicon UWX1C100MCR2GB Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

UWX1C100MCR2GB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UWX1C100MCR2GB Estimated Pricing

Qty Low High
1+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

UWX1C100MCR2GB Features

  • 10µF capacitance with ±20% tolerance.
  • Rated for 16V DC operation.
  • Surface mount Radial, Can - SMD package.
  • Operating temperature range of -40°C to 85°C.
  • 2000 hours lifetime at 85°C.

UWX1C100MCR2GB Applications

  • Suitable for general purpose applications.
  • Ideal for compact electronic designs.
  • Used in power supply filtering circuits.
  • Component for consumer electronics.

UWX1C100MCR2GB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the UWX1C100MCR2GB capacitor?

The capacitance of the UWX1C100MCR2GB capacitor is 10µF.

What is the rated voltage for the Nichicon UWX1C100MCR2GB?

The rated voltage for the UWX1C100MCR2GB is 16V.

What is the tolerance of the UWX1C100MCR2GB capacitor?

The tolerance of the UWX1C100MCR2GB capacitor is ±20%.

What is the operating temperature range for this capacitor?

The operating temperature range for the UWX1C100MCR2GB is -40°C to 85°C.

What is the expected lifetime of the UWX1C100MCR2GB at 85°C?

The expected lifetime of the UWX1C100MCR2GB at 85°C is 2000 hours.

What type of package is the UWX1C100MCR2GB capacitor in?

The UWX1C100MCR2GB capacitor is in a Radial, Can - SMD package.

What are the dimensions of the UWX1C100MCR2GB capacitor?

The capacitor has a diameter of 3.00mm and a seated height of 5.40mm.
