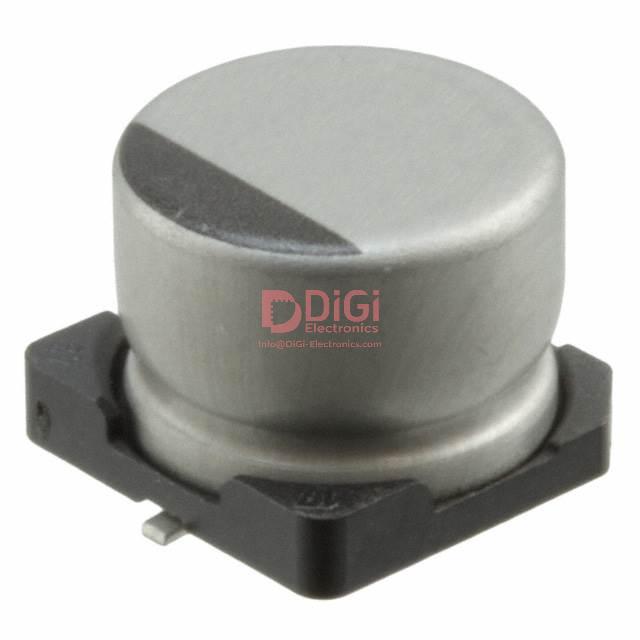

UWF1A151MCL1GS The Nichicon UWF1A151MCL1GS is an aluminum electrolytic capacitor with a capacitance of 150µF and a rated voltage of 10V. It offers a tolerance of ±20%.
Mfr Part #:

UWF1A151MCL1GS

Available from 1 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UWF1A151MCL1GS is an aluminum electrolytic capacitor with a capacitance of 150µF and a rated voltage of 10V. It offers a tolerance of ±20%.
✓ Total Stock: 965 pcs
$ Price Range: $1.16

UWF1A151MCL1GS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
965 pcs
On Request
965 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UWF1A151MCL1GS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Lead Style
Mounting Type
Operating Temperature
Ratings
SVHC Present
Tolerance
View Similar Products (0)

UWF1A151MCL1GS Description

Short technical summary and product information.

This Nichicon UWF1A151MCL1GS is an aluminum electrolytic capacitor designed for general purpose applications. It features a capacitance of 150µF with a tolerance of ±20% and a rated voltage of 10V.



The capacitor operates within a temperature range of -55°C to 105°C and has a specified lifetime of 1000 hours at 105°C. It supports ripple currents of 115 mA at low frequencies (120 Hz) and 230 mA at high frequencies (100 kHz).



Packaged in a radial, can - SMD format, this component is suitable for surface mount applications. It adheres to AEC-Q200 standards, indicating its suitability for demanding environments.

UWF1A151MCL1GS Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: UWG
Canonical Name: Nichicon UWG1A151MCL1GS Aluminum Electrolytic Capacitor 150µF 10V ±20%
Subcategory: Aluminum Electrolytic Capacitors

UWF1A151MCL1GS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UWF1A151MCL1GS Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

UWF1A151MCL1GS Features

  • 150µF capacitance with ±20% tolerance.
  • Rated for 10V DC operation.
  • 1000 hours lifetime at 105°C.
  • Surface mount radial can package.
  • AEC-Q200 qualified for reliability.

UWF1A151MCL1GS Applications

  • General purpose filtering and decoupling circuits.
  • Automotive electronic control modules.
  • Power supply input and output smoothing.
  • DC-DC converter output filtering.
  • Consumer electronics power management.

UWF1A151MCL1GS FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the UWF1A151MCL1GS capacitor?

The capacitance is 150 µF.

What is the rated voltage for the UWF1A151MCL1GS capacitor?

The rated voltage is 10 V.

What is the operating temperature range for this Nichicon capacitor?

The operating temperature range is -55°C to 105°C.

What is the lifetime of the UWF1A151MCL1GS at 105°C?

The lifetime is 1000 hours at 105°C.

What type of package is the UWF1A151MCL1GS capacitor in?

It is in a Radial, Can - SMD package.
