| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
656 pcs
|
656 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

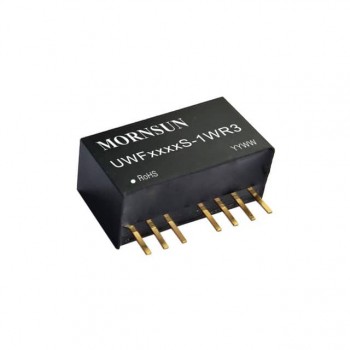

The Morning Star Industrial UWF1215S-3WR3 is an isolated DC DC converter designed for board mount applications. It features a wide input voltage range from 4.5V to 36V, delivering a stable 15V output with a maximum current of 200mA, resulting in a total power output of 3W.
This converter offers 3kV of isolation, making it suitable for applications requiring electrical separation. It operates efficiently at 79% and is designed for through-hole mounting in an 8-SIP module package. The operating temperature range is -40°C to 105°C with derating.
Designed for ITE (Commercial) applications, the UWF1215S-3WR3 meets CE approval. Its dimensions are 22.0mm in length, 9.5mm in width, and 12.0mm in height. The component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 36V.
The output voltage is 15V and the maximum output current is 200mA.
The power rating is 3W.
The isolation voltage is 3kV.
The operating temperature range is -40°C to 105°C with derating.
It is mounted using the through-hole method.
The RoHS status is RoHS3 Compliant.
