| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Isolation Voltage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Max | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

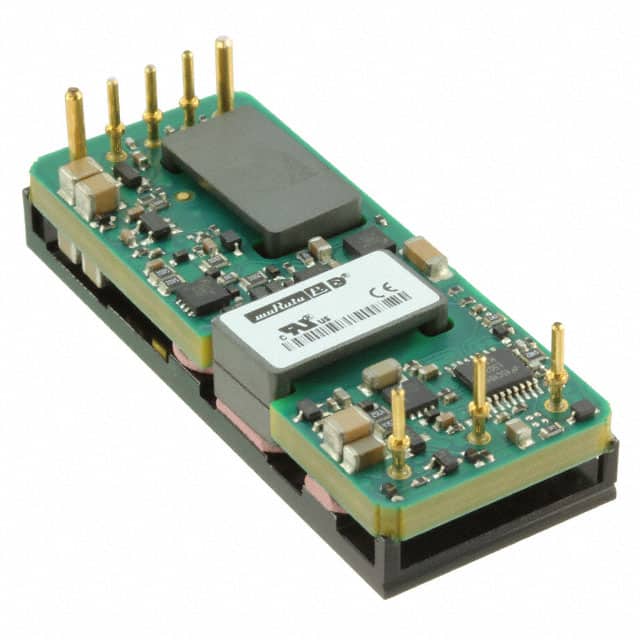

The UWE-15/5-Q48NB-C is an isolated DC-DC converter from Murata Power Solutions, part of the UWE series of eighth-brick modules. It delivers a fixed 15V output at 5A, providing up to 75W of power from a wide 18-75V DC input range. The converter uses synchronous rectification to achieve a high efficiency of 90.5%, reducing power dissipation and thermal load.
Designed for commercial ITE (Information Technology Equipment) applications, the module offers 2250V DC isolation (Q48 models) and operates over a temperature range of -40°C to +85°C with derating. Protection features include overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and under-voltage lockout (UVLO). The control interface supports remote on/off with active-low enable.
Packaged in an industry-standard 8-DIP through-hole module with 1/8 brick dimensions (58.4mm x 22.9mm x 8.6mm), the UWE-15/5-Q48NB-C is pin-compatible with quarter-brick footprints. Its compact size and high efficiency make it suitable for power-sensitive embedded systems, CPU cards, and telecom infrastructure.
| Qty | Low | High |
|---|---|---|
| 1+ | $85.65 | $85.65 |
| 5+ | $82.45 | $82.45 |
| 10+ | $81.36 | $81.36 |
| 25+ | $78.89 | $78.89 |
| 42+ | $77.59 | $77.59 |
| 84+ | $77.01 | $77.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 75V DC.
The output is 15V at 5A, providing 75W of power.
The operating temperature range is -40°C to +85°C.
Typical efficiency is 90.5%.
The isolation voltage is 2250V DC (Q48 models).
It comes in an 8-DIP module, 1/8 brick package with through-hole mounting.
Yes, it is RoHS3 compliant as verified by the datasheet.
