| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Input Voltage (Nominal) | |
| Input Voltage Max | |
| Isolation Voltage | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple & Noise (Typical/Maximum) | |
| Ripple And Noise (Typical/Maximum) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

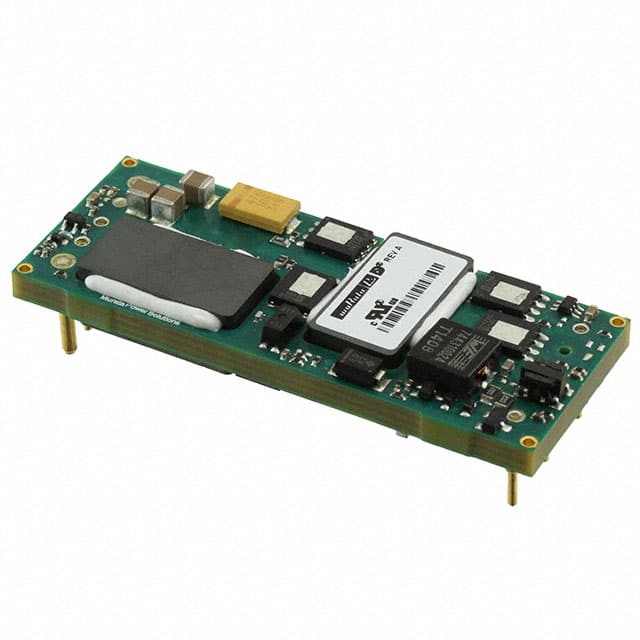

The Murata Power Solutions UWE-12/10-Q12P-C is an isolated DC-DC converter module from the UWE-Q12 series. It delivers a regulated 12V output at up to 10A, providing 120W of output power. The module accepts a wide 9-36Vdc input range, making it suitable for applications with battery backup or varying input voltages.
Typical efficiency is 90% with a maximum of 92%. The converter features 2250Vdc input-to-output isolation and includes comprehensive protection features: overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP), short circuit protection (SCP), and under-voltage lockout (UVLO). Remote on/off control is supported via an active-high enable input.
The module is packaged in a DOSA-compatible 1/8 brick footprint with a through-hole 8-DIP mounting interface. Dimensions are 58.4mm x 22.9mm x 8.6mm (2.30" x 0.90" x 0.34"). It operates over a -40°C to 85°C temperature range and is designed for ITE (commercial) applications. The device is RoHS3 compliant.
The output voltage is 12V and the output current is 10A, providing 120W of output power.
The input voltage range is 9V to 36Vdc, with a nominal input of 12V.
Typical efficiency is 90% with a maximum efficiency of 92%.
It uses an 8-DIP Module, 1/8 Brick package with through-hole mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant as verified by the datasheet.
The module includes overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), short circuit protection (SCP), and under-voltage lockout (UVLO).
