UVZ1H220MDD1TD The Nichicon UVZ1H220MDD1TD is an aluminum electrolytic capacitor with a capacitance of 22uF and a voltage rating of 50V. It features a radial, through-hole package.
Mfr Part #:

UVZ1H220MDD1TD

Available from 1 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UVZ1H220MDD1TD is an aluminum electrolytic capacitor with a capacitance of 22uF and a voltage rating of 50V. It features a radial, through-hole package.
✓ Total Stock: 1,847 pcs
$ Price Range: $1.32

UVZ1H220MDD1TD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,847 pcs
On Request
1847 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UVZ1H220MDD1TD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Dielectric Material
Lead Style
Mounting Style
Operating Temperature
View Similar Products (0)

UVZ1H220MDD1TD Description

Short technical summary and product information.

The Nichicon UVZ1H220MDD1TD is an aluminum electrolytic capacitor from the VZ Series. It offers a capacitance of 22uF with a tolerance of ±20% and is rated for a DC voltage of 50V.



This capacitor operates within a temperature range of -55℃ to 105℃ and has a rated life of 1000 hours at 105℃. The dielectric material is aluminum electrolytic. It has a ripple current of 68mA.

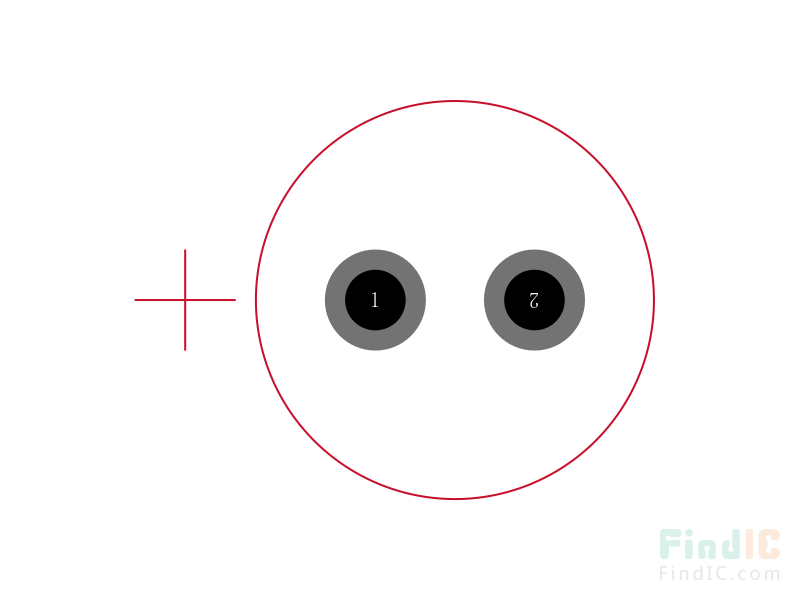

The component is housed in a Radial, CAN package and features a Through Hole mounting style. The pin pitch is 2mm, with dimensions of 5.00mm in diameter and 11mm in length and height. The packaging is supplied on Tape & Reel (TR).



This part is compliant with RoHS3 and Lead-Free standards. Its MSL is 1 Unlimited and REACH status is Unaffected.

UVZ1H220MDD1TD Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: VZ Series
Canonical Name: Nichicon UVZ1H220MDD1TD Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

UVZ1H220MDD1TD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UVZ1H220MDD1TD Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

UVZ1H220MDD1TD Features

  • 22uF capacitance with ±20% tolerance.
  • Rated for 50V DC operation.
  • Operates from -55℃ to 105℃.
  • 1000 hours rated life at 105℃.
  • Radial, CAN package with Through Hole mounting.

UVZ1H220MDD1TD Applications

  • Suitable for general-purpose DC/DC converter circuits
  • Used in audio coupling and decoupling applications
  • Ideal for low-frequency filtering and bypassing
  • Common in power supply smoothing stages
  • Applicable in consumer electronics timing circuits

UVZ1H220MDD1TD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the UVZ1H220MDD1TD?

The capacitance of the UVZ1H220MDD1TD is 22 uF.

What is the voltage rating of the UVZ1H220MDD1TD?

The voltage rating (DC) of the UVZ1H220MDD1TD is 50 V.

What is the operating temperature range for the UVZ1H220MDD1TD?

The operating temperature range for the UVZ1H220MDD1TD is -55 ℃ to 105 ℃.

What is the capacitance tolerance of this capacitor?

The capacitance tolerance is ±20%.

What is the ripple current rating for the UVZ1H220MDD1TD?

The ripple current is 68 mA.

What is the rated life of the UVZ1H220MDD1TD?

The rated life is 1000 hours at 105 ℃.

What are the dimensions of the UVZ1H220MDD1TD?

The diameter is 5.00 mm and the length/height is 11 mm.
