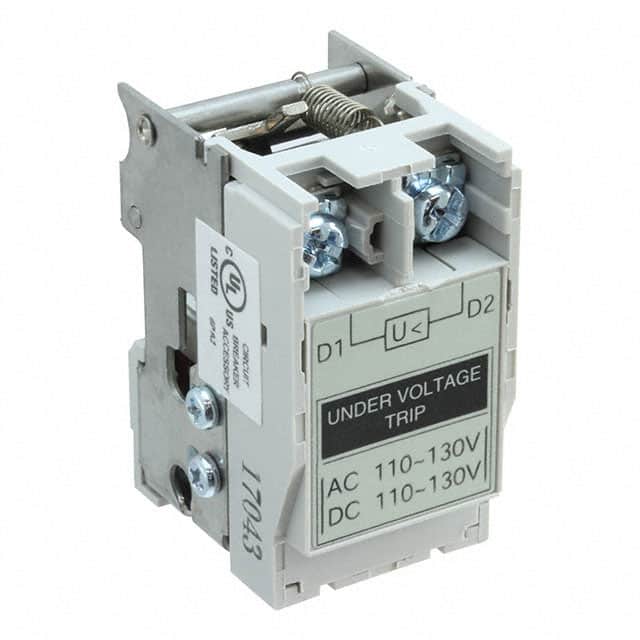

The American Electrical Inc. UVT-100 is an undervoltage release module specifically designed for use with the UTS150N to UTS600N series of molded case circuit breakers. This module functions by tripping the circuit breaker when the control voltage drops to between 35% and 70% of its nominal value. Crucially, the breaker cannot be re-closed until the control voltage returns to at least 85% of its nominal level, ensuring system safety during power fluctuations.
This module operates with a current draw of 5.8 mA and is compatible with control voltages ranging from 110 to 130 VAC/DC. It is classified under RoHS3 compliance. The UVT-100 is an essential accessory for enhancing the protective capabilities of compatible American Electrical Inc. circuit breakers, particularly in applications where stable power is critical.
Designed as an accessory for circuit protection systems, the UVT-100 integrates seamlessly with the specified UTS series breakers. Its function is vital for preventing damage to equipment or systems that are sensitive to undervoltage conditions. The module's specifications ensure reliable operation within its intended voltage and current parameters.
110 V AC.
130 V DC.
5.8 mA.
The UVT-100 is designed for use with UTS150N circuit breakers.
It is an undervoltage release module.
