| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Failure Rate | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tolerance | |
| Voltage |

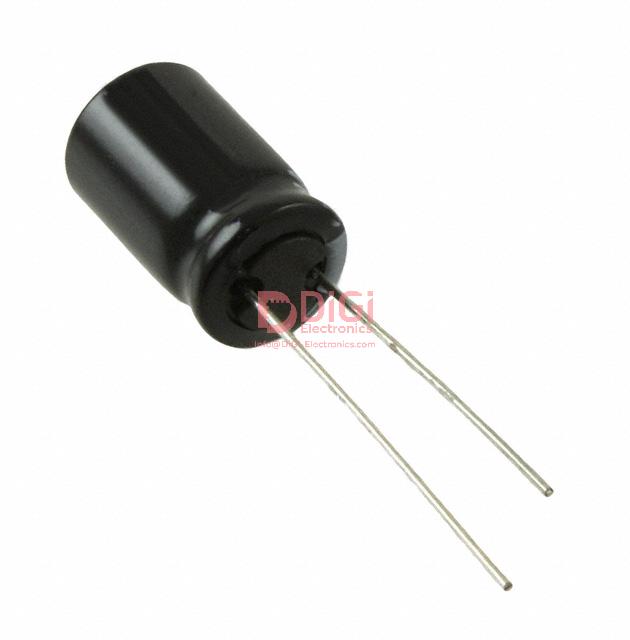

This Nichicon UVR1A102MPA is an aluminum electrolytic capacitor designed for general purpose applications. It features a capacitance of 1000 µF with a tolerance of ±20% and a rated voltage of 10 V.
The capacitor has a rated lifetime of 2000 hours at 85°C and operates within a temperature range of -40°C to 85°C. Electrical characteristics include a low-frequency ripple current of 650 mA at 120 Hz and a high-frequency ripple current of 747.5 mA at 10 kHz.
Mechanically, the component has a lead spacing of 5.00mm and dimensions of 10.00mm in diameter with a maximum seated height of 12.50mm. It is designed for through-hole mounting and comes in a radial, can package.
The product status is listed as obsolete. Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are noted as having low confidence due to unverified data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the UVR1A102MPA capacitor is 1000 µF.
The rated voltage for the UVR1A102MPA capacitor is 10 V.
The tolerance of the UVR1A102MPA capacitor is ±20%.
The expected lifetime of the UVR1A102MPA capacitor at 85°C is 2000 hours.
The operating temperature range for the UVR1A102MPA capacitor is -40°C to 85°C.
The UVR1A102MPA capacitor uses a Radial, Can package.
The UVR1A102MPA capacitor is mounted using the Through Hole method.
