| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,750 pcs
|
2750 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Failure Rate | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tolerance |

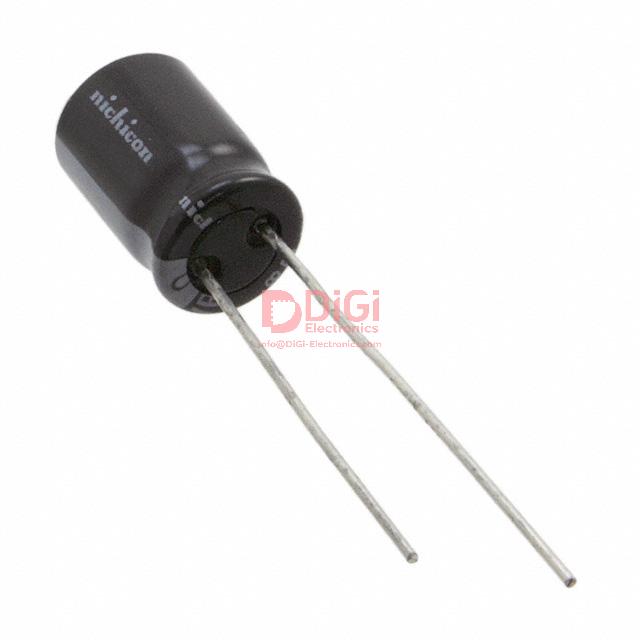

This Nichicon UVR0J102MPA is an aluminum electrolytic capacitor designed for general purpose applications. It offers a capacitance of 1000 µF with a tolerance of ±20% and a rated voltage of 6.3 V.
The capacitor operates within a temperature range of -40°C to 85°C and has a rated lifetime of 2000 hours at 85°C. It features a radial, can package suitable for through-hole mounting.
Key electrical characteristics include a ripple current of 540 mA at 120 Hz and 621 mA at 10 kHz. The lead spacing is 3.50mm, with a diameter of 8.00mm and a maximum seated height of 11.50mm.
This component is classified under the UVR series and is marked as obsolete. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 1000 µF.
The rated DC voltage is 6.3 V.
The operating temperature range is -40°C to 85°C.
It uses a radial, can package with 8.00 mm diameter, 11.50 mm seated height, and 3.50 mm lead spacing.
It is rated for 540 mA at 120 Hz and 621 mA at 10 kHz.
Lifetime is 2000 hours at 85°C.
The tolerance is ±20%.
