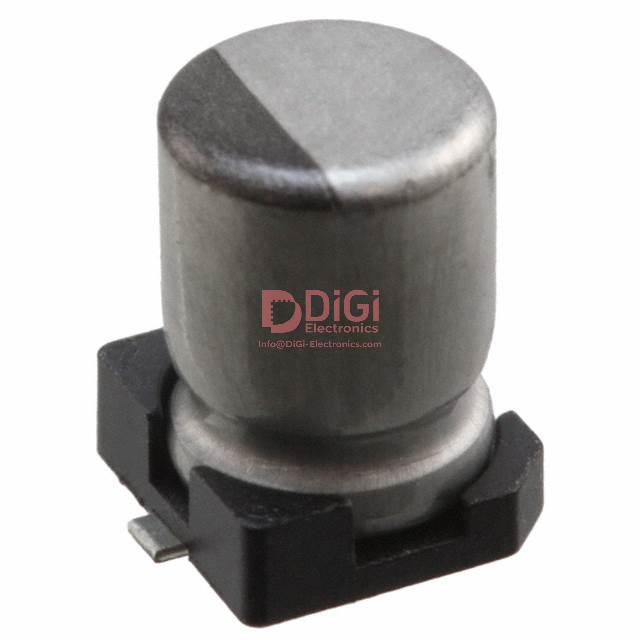

UUT0J220MCL1GS The Nichicon UUA0J220MCL1GS is an aluminum electrolytic capacitor with a capacitance of 22uF and a rated voltage of 6.3V. It is designed for surface mount applications.
Mfr Part #:

UUT0J220MCL1GS

Available from 1 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UUA0J220MCL1GS is an aluminum electrolytic capacitor with a capacitance of 22uF and a rated voltage of 6.3V. It is designed for surface mount applications.
✓ Total Stock: 20,000 pcs
$ Price Range: $0.81

UUT0J220MCL1GS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UUT0J220MCL1GS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Mounting Type
Operating Temperature
Polarization
Storage Temperature
Tape & Reel
Tolerance
View Similar Products (0)

UUT0J220MCL1GS Description

Short technical summary and product information.

This Nichicon UUA0J220MCL1GS is an aluminum electrolytic capacitor from the UUA series. It features a capacitance of 22 µF with a tolerance of ±20% and a rated voltage of 6.3V.



The capacitor is designed for surface mount (SMD) applications and comes in a Radial, Can - SMD package. It operates within a temperature range of -55°C to 105°C and has a rated lifetime of 3000 hours at 105°C.



Key electrical characteristics include a typical ripple current of 22 mA at 120 Hz and 33 mA at 10 kHz. This component is suitable for general-purpose applications.

UUT0J220MCL1GS Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: UUA
Canonical Name: Nichicon UUA0J220MCL1GS Aluminum Electrolytic Capacitor 22uF 6.3V ±20%
Subcategory: Aluminum Electrolytic Capacitors

UUT0J220MCL1GS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UUT0J220MCL1GS Estimated Pricing

Qty Low High
1+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

UUT0J220MCL1GS Features

  • 22uF capacitance with ±20% tolerance.
  • Rated for 6.3V DC operation.
  • Surface mount (SMD) package.
  • 3000 hours lifetime at 105°C.
  • Suitable for general purpose applications.

UUT0J220MCL1GS Applications

  • Ideal for general purpose circuits.
  • Used in power supply filtering.
  • Suitable for signal coupling.
  • Applications requiring stable capacitance.

UUT0J220MCL1GS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the Nichicon UUA0J220MCL1GS capacitor?

The capacitance is 22 uF.

What is the rated voltage for the UUA0J220MCL1GS capacitor?

The rated voltage is 6.3 V.

What is the tolerance of the Nichicon UUA0J220MCL1GS capacitor?

The tolerance is ±20%.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 105°C.

What is the expected lifetime of the UUA0J220MCL1GS at 105°C?

The lifetime is 3000 Hrs @ 105°C.

What type of mounting is required for the UUA0J220MCL1GS capacitor?

It requires surface mount (SMD) mounting.
