| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
163 pcs
|
163 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| Diameter | |
| Height | |
| Impedance | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Rated Voltage | |
| Storage Temperature | |
| Tape & Reel |

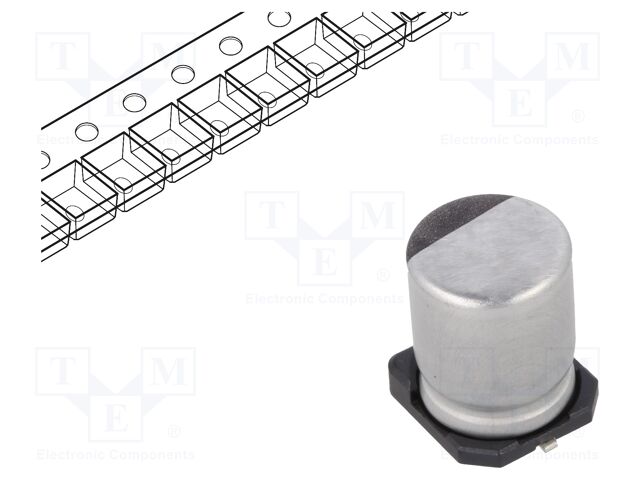

This Nichicon UUD1C101MCL1GS is a low impedance aluminum electrolytic capacitor designed for surface mounting on high-density PC boards. It operates within a temperature range of -55°C to +105°C and has a rated voltage of 16VDC with a capacitance of 100µF and a tolerance of ±20%.
The capacitor is suitable for automatic mounting machines and is compliant with the RoHS directive. It has an endurance rating of 2000 hours at 105°C and an impedance of 1Ω. The body dimensions are Ø6.3x5.8mm, making it ideal for space-constrained applications.
Key electrical characteristics include a leakage current not exceeding 0.01 CV or 3 µA, whichever is greater, and a dissipation factor (tan δ) of 0.16 (0.20) at 120Hz. The ripple current coefficient is 1.00 at 10 kHz or more.
This component is AEC-Q200 Qualified, indicating its suitability for demanding automotive and industrial applications. It is supplied on a reel for efficient high-volume assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the UUD1C101MCL1GS capacitor is 100µF.
The rated voltage for the UUD1C101MCL1GS capacitor is 16VDC.
The capacitance tolerance of the UUD1C101MCL1GS capacitor is ±20%.
The operating temperature range for the UUD1C101MCL1GS capacitor is -55°C to +105°C.
The body dimensions of the UUD1C101MCL1GS capacitor are Ø6.3x5.8mm.
The service life of the UUD1C101MCL1GS capacitor is 2000 hours at 105°C.
Yes, the UUD1C101MCL1GS capacitor is AEC-Q200 Qualified.
